Need help calculating the heat output for your room?
Guarantee Length: 5 Years (Towel Rail), 2 Year (Element)
Collection: Adisham
Supplied with: Dual Fuel Element, Traditional Manual Valves & Masonry Fixings Included
Colour: White
Finish: Gloss
Heat Source: Dual Fuel
Ral Code: 9016
Material: Steel
Style: Traditional
Radiator Valves Included: TRUE
Product Assurances: UKCA Marked, BSEN442 Certified,5 Years (Towel Rail), 2 Year (Element)
SKU ADM-9583-THDF
Connection Size/Type: 1/2" BSP
GTIN:5056675400817
Dry Mass (kg):13kg

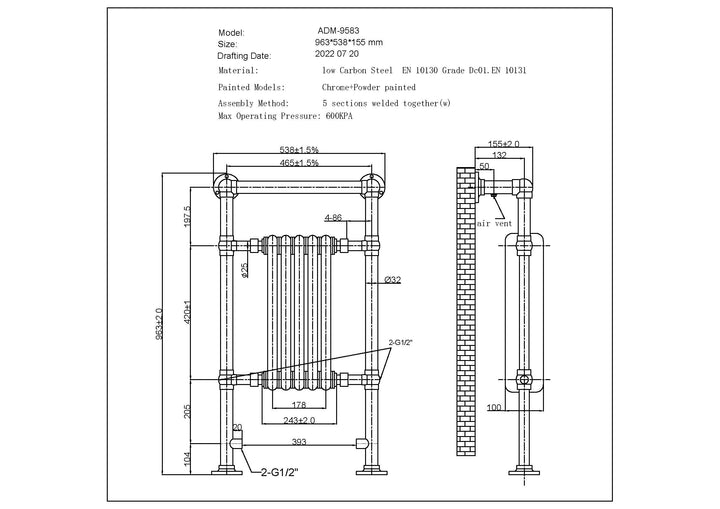

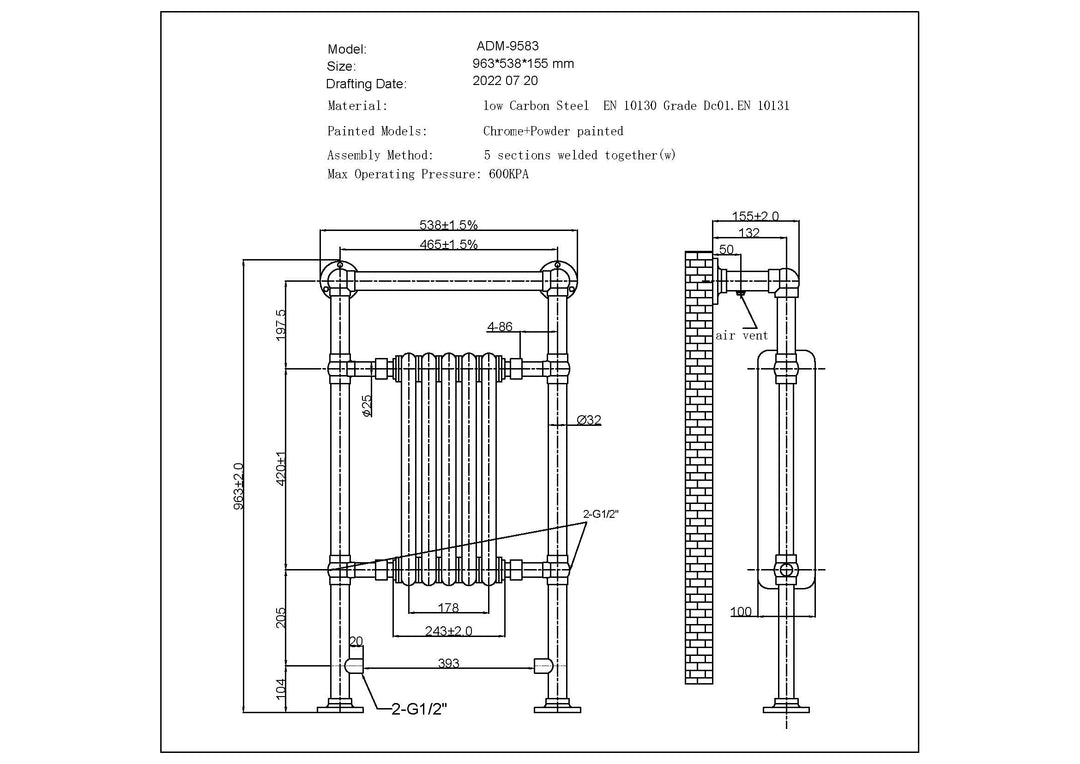

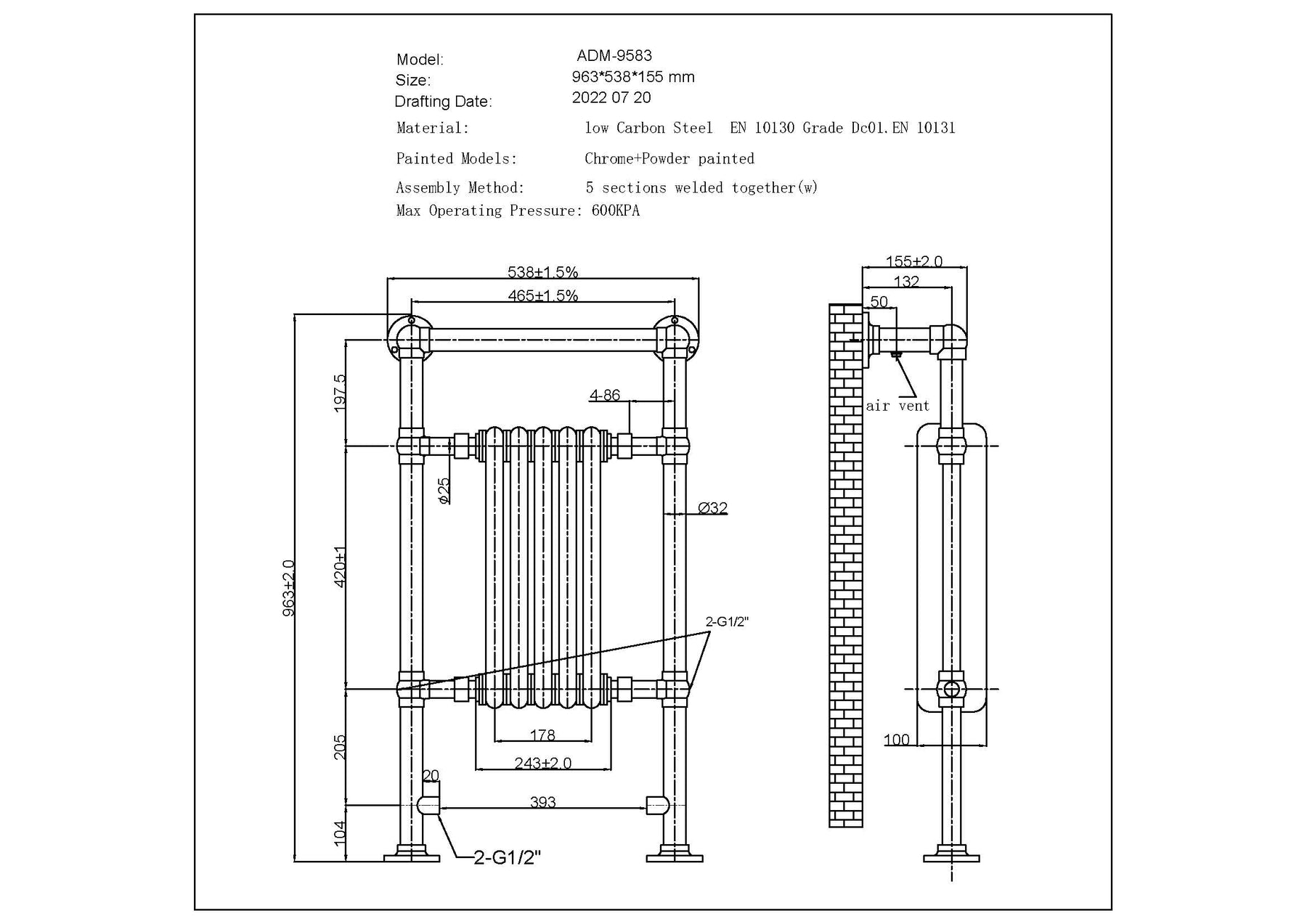

Height: 963mm
Width:538mm
Pipe Centres: 393 - Valves
Projection: 155mm
Wall to Pipe Centres: 132mm
BTUs (T30): 665.00
BTUs (T40):945.00
BTUs (T50): 1239.00
Watts (T30):195.00
Watts (T40): 277.00
Watts (T50): 363.00
Water Content (l): 5.2
Dual Fuel Heating Element Type: Multi-Function, Class 1 Insulated
Element Output: 300W
Maximum Operating Pressure (kPa): 600.00
Maximum Operating Temperature (C): 45°C - 65°C; 7°C Antifreeze Protection
IP Rating: IPX4
Power Supply: 220V-240V Fused Spur, 3 Amp Fuse*
Operating Modes: Standby w/Antifreeze, Heating, Boost/Program, Error
Control Type: Built-In Programmable Thermostat
Steel offers the lowest price tag compared to other materials, but it also offers the most diversity in terms of colour and style. Steel is a highly durable material which is important as towel rails are going to be the victims of some knocks and bangs over time and you want them to withstand that.
StyleGone are the days when the word “Traditional” implied old aged and boring. Like column radiators, traditional style towel radiators are a timeless classic that have never gone out of style. Ideal for those vintage themed bathrooms, the traditional style offers a steel frame with a column radiator at its centre.
ColourWhite is a true classic. Ideal for those who like to switch up their décor from time to time, a white towel rail won’t restrict your interior design spirit. This gloss powder-coated finish is perfectly even and looks gorgeous with the simple wipe of a cloth. White can be perceived as boring or safe, but in reality, it gives a clean and fresh impression in your bathroom. Plus, with our wide range of radiator valves and accessories, you can add a touch of colour to the radiator without it becoming overbearing within the room.
Heat SourceThis dual fuel towel radiator works both as part of your central heating and independently using electricity. This enables you to keep your bathroom warm over the winter by relying just on the central heating system while also being able to use the electric element to dry your towels during the warmer summer months while the rest of your heating is turned off.
AccessoriesThis towel rail is provided with everything required to hang the rail on the wall - brackets & masonry fixings, chrome bleed valve and blanking plug, as well as all the accessories needed for the dual fuel functionality - electric element, 2 x t-pieces, a pair of angled manual valves. The t-piece acts as an extension which allows you to insert the electric element into the towel rail as well as attach the valves. The use of 2nd t-piece provided is optional, for those who want to create symmetry with the valves on both sides of the rail. The element can be installed on either the left or right hand side of the towel rail - whichever is better for your set up.

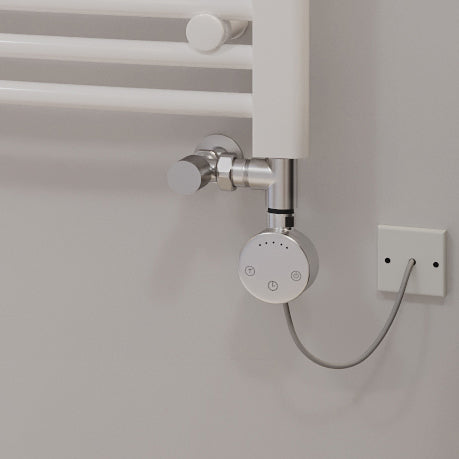

The Element
The Talus digital element gives you flexibility and control over your heating system. The thermostatic heating system allows the radiator temperature range to be selected from 45-65°C, in 5°C increments. The LED lights indicate the temperature setting, for at-a-glance checking.
Operation:Standby Mode - When the element is power connected, it will default to standby mode. This will be indicated by a blue light on the power button.
Heating Mode - Press the Power button to enter heating mode, a red light will appear on the button. Then use the T button to select the temperature, the lights at the top will indicate the chosen temperature. 1st light = 45°C, 2nd light = 50°C, 3rd light = 55°C etc.
Boost/Program Mode - There are 3 boost setting available:
- Boost 2hr - shown by a red light on the clock button. The element is turned on for a 2 hour period and the temperature is automatically controlled as to not exceed 65°C. After the 2 hour period the element will return to standby.
- B1 Program - shown by a blue light on the clock button. The element enters Boost 2hr (above). After the 2 hour period the element will return to standby for 22 hours. This schedule then repeats.
- B2 Program - shown by a red light on the clock button. The element enters Boost 2hr (above). After the 2 hour period the element will return to standby for 10 hours, then Boost 2hr is activated again, followed by 10hrs in standby. This schedule then repeats.
Error Mode - if the liquid temperature drops below -10°C or above 85°C then the element will enter error mode, this is shown by slow flashing red lights. If this happens, please switch off the power source and contact and electrician.
Frost Protection - If the liquid drops below 7°C the element will turn on and begin to heat
Full Installation Instructions and User Guide will be provided with the element.
- Free delivery (UK Mainland, Northern Ireland/Highlands/Islands)
- Once dispatched, all orders are sent on a Next Working Day delivery service
- We deliver between 8am and 6pm
- Contact us to delay delivery/request a specific day
- Limitless (that's right, no time limit!) returns
- Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
- Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
- Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
- If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
- Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
-
How can I contact you?
You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.
-
Where do you deliver?
We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.
We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.
-
Who will deliver my order?
Our 2 main couriers for UK Radiators products are DX Express and ArrowXL. Your courier will depend on the size and weight of the items on your order.
For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with ArrowXL.
Tracking is provided for all orders dispatched from our warehouse.
If you order a Terma product, your item(s) will be coming directly from their warehouse.
The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.
-
Can I choose a specific time or day for my delivery?
If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.
We are currently unable to request specific delivery time slots with our couriers.
Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.
-
Can I upgrade my delivery?
Once dispatched, your order is sent on a next working day delivery service. This is the fastest available service, so we are unable to upgrade your delivery any further.
-
Can I send orders to a different address?
You can change the shipping address to a different address if your billing address matches what's registered against your payment method.
However, this can only be done when placing the order.
We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.
Your chosen heating system:
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
- Δ30 = Low temperature systems e.g heat pumps.
