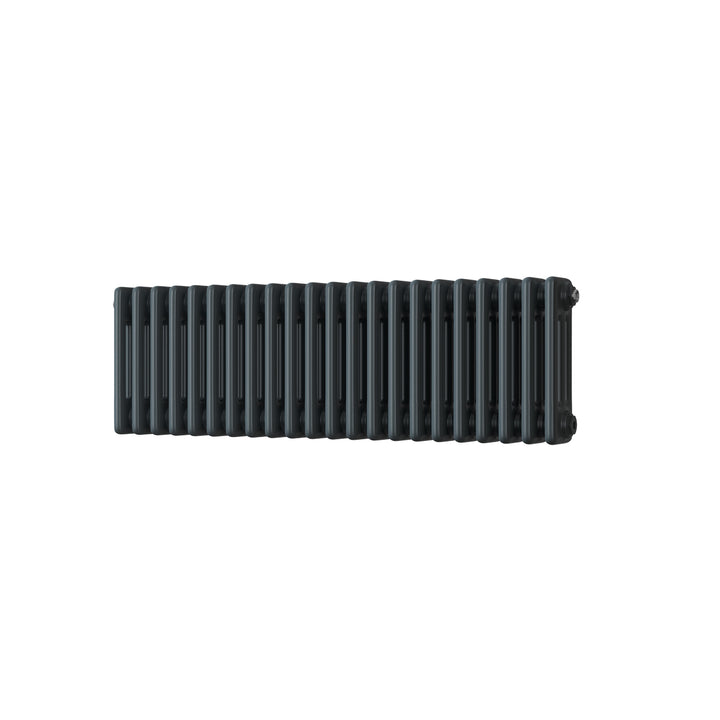

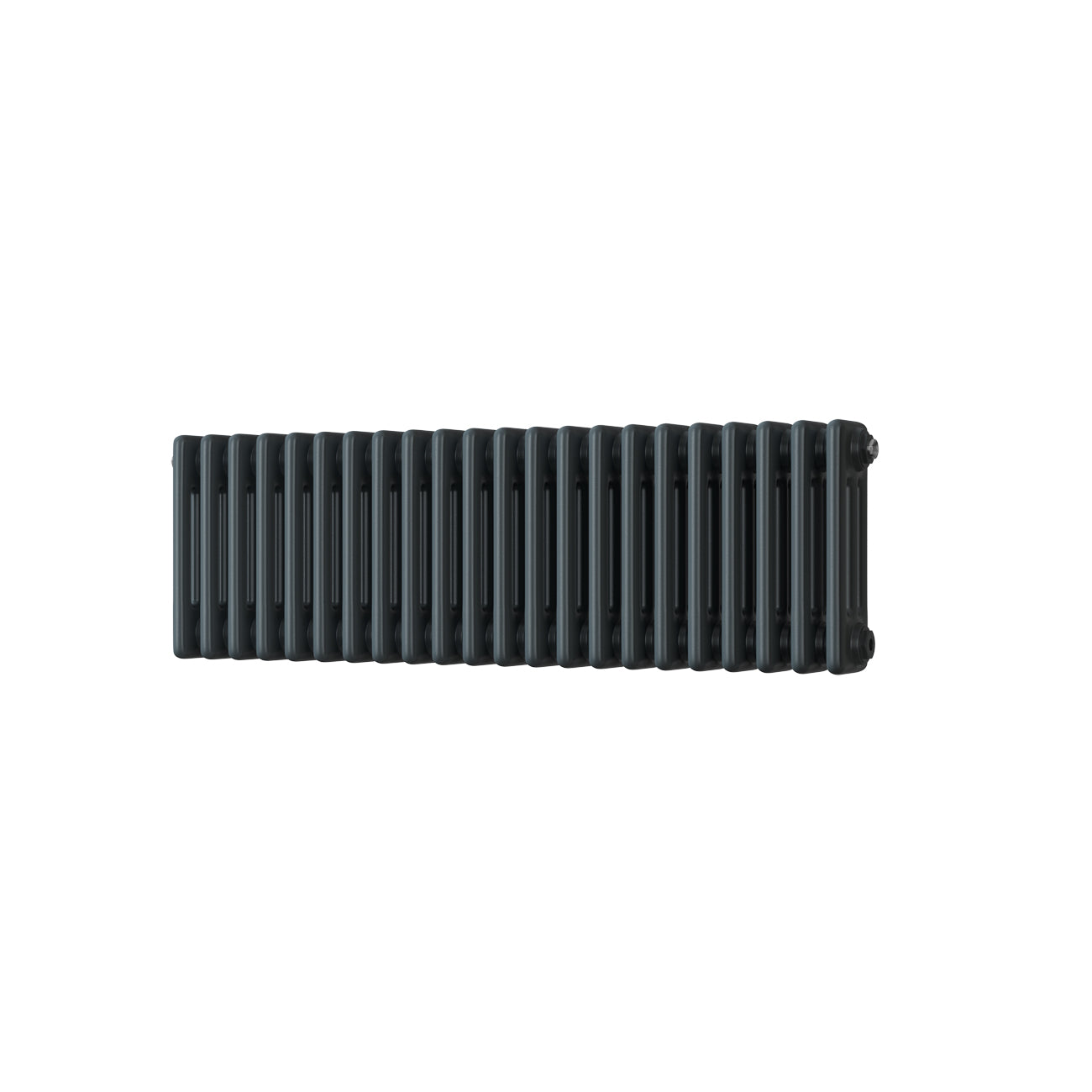

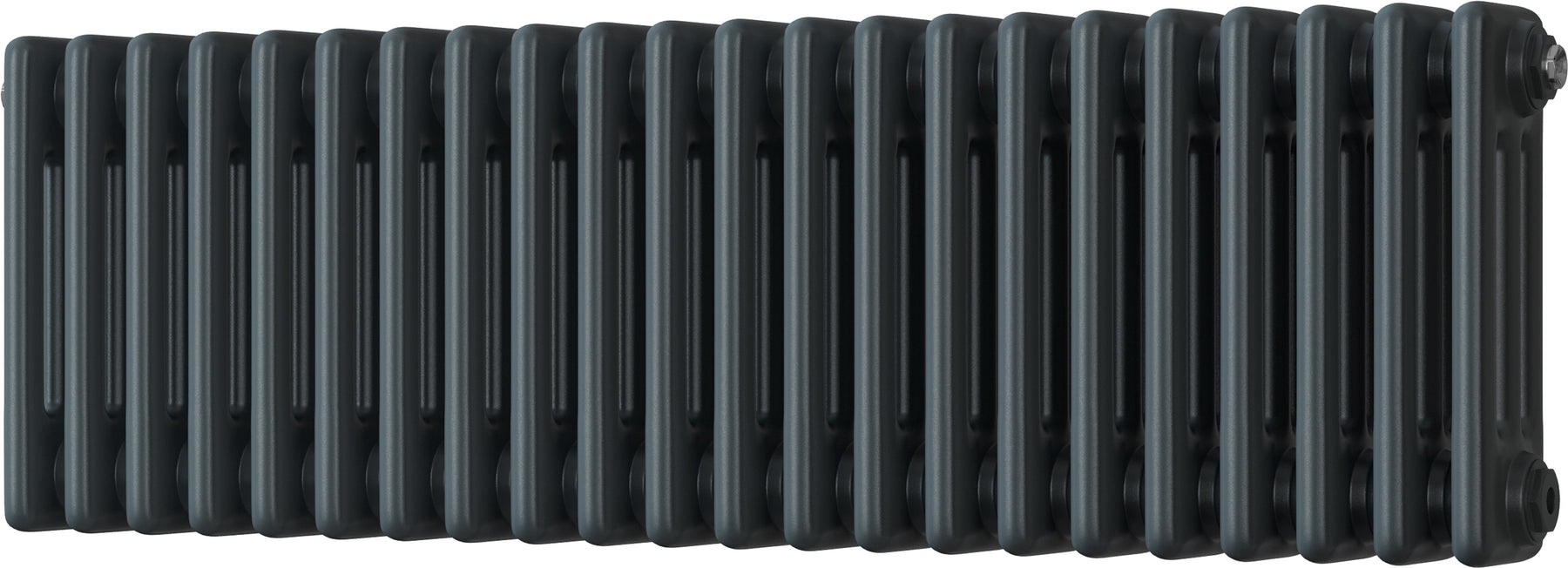

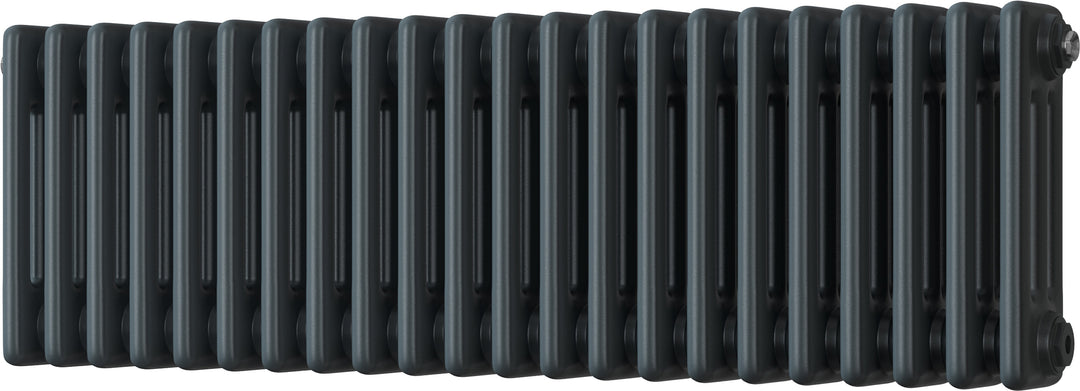

Alpha Anthracite 3 Column Radiator 300mm x 999mm – Horizontal Traditional Radiator
Product code: 20729
Material
Steel offers the lowest price tag compared to other materials, but it also provides the most diversity in terms of style. Steel is malleable, allowing radiators to be designed efficiently to transfer heat from the water inside to the surrounding space (this is the radiator’s job, despite some thinking it stores heat). The heat output is excellent — steel is the most common radiator material for good reason. It’s also highly durable, which is important as radiators can take knocks and bumps over time, so you want one that lasts.
Columns
“Column” refers to the radiator’s style, and the number in front (e.g., “3 Column”) indicates the number of vertical tubes in each section. These tubes are connected at the top and bottom. A 3 column (also called triple column) radiator has three vertical tubes per section. Compared to slimmer 2 column models, the 3 column offers greater depth and heat output, making it ideal for heating larger rooms effectively.
ColourAnthracite is a high-end variety of coal noted for the purity of its carbon and the dark grey smoke it emits when burning. It’s also one of our customers’ most popular picks for a modern-looking radiator that looks as good as it functions. The smoky matt finish you achieve with this colour is quite unlike any other and produces a stylish effect with even the most minimalist design. As we become more conscious of our surroundings, tastes shift from the functional and the merely decorative to something combining qualities of both, and anthracite radiators certainly tick all of the boxes.
Heat Source
This central heating or hot water radiator connects directly to your home’s central heating system. Whether you have a Combi boiler, gravity-fed (conventional) system, or a system with a cylinder, this radiator can be installed to provide reliable heat.
Accessories
This radiator has G1/2” connections on either side at the bottom, so the valves you need will depend on your pipework (valves are not included):
For pipework coming from the wall to the radiator’s side, use corner valves.
For pipework coming from the floor up to the radiator’s side, use angled valves.
For pipework running along the wall to the radiator’s side, use straight valves.
Wall mounting brackets are included. Column radiator feet aren’t necessary but can enhance the traditional look. If desired, you can use the feet alongside wall brackets to better support the radiator’s weight. Alternatively, skip the wall brackets and install wall stays in matching or contrasting colours.
Valve options include:
Manual Valves: Easy on/off control by hand, ideal if the radiator is in the same room as your main boiler thermostat (to avoid temperature conflicts).
Thermostatic Radiator Valves (TRVs): Allow individual temperature control, saving energy and money by shutting off water flow when the desired room temperature is reached. Best used in rooms without the main boiler thermostat.
Need help calculating the heat output for your room?
Guarantee Length: 15 Years
Collection: Alpha
Supplied with: Wall Brackets,Masonry Fixings,Bleed Valve & Blanking Plug Included
Colour: Anthracite
Finish: Matt
Heat Source: Central Heated/Hot Water
Ral Code: 7016
Material: Steel
Orientation: Horizontal
Style: 3 Column
Radiator Valves Included: No
Product Assurances: UKCA Marked, BSEN442 Certified,15 Years
SKU A-ALP-3-30999
Connection Size/Type: 1/2" BSP
GTIN:5056675400329
Dry Mass (kg):21.2kg

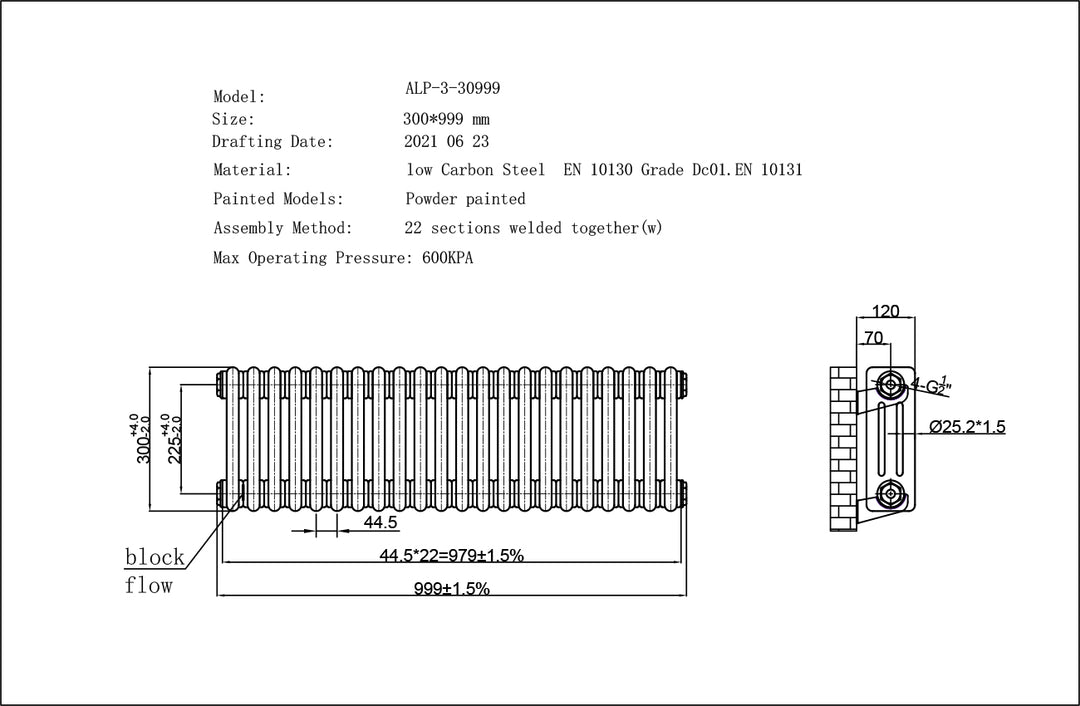

Height: 300mm
Width:999mm
Pipe Centres: 999mm + Valves
Projection: 120.5mm
Wall to Pipe Centres: 70.5mm
BTUs (T30): 1194.00
BTUs (T50): 2324.00
Watts (T30):350.00
Watts (T50): 681.00
Water Content (l): 11.1
Number of Sections: 22
Number of Columns: 3 Column
Maximum Operating Pressure (kPa): 600.00
Depth: 100mm
Download: Declaration of Performance
Download: Installation Instructions
- Free delivery (UK Mainland, Northern Ireland/Highlands/Islands)
- Once dispatched, all orders are sent on a Next Working Day delivery service
- We deliver between 8am and 6pm
- Contact us to delay delivery/request a specific day
- Limitless (that's right, no time limit!) returns
- Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
- Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
- Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
- If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
- Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
-
How can I contact you?
You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.
-
Where do you deliver?
We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.
We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.
-
Who will deliver my order?
Our 2 main couriers for UK Radiators products are DX Express and ArrowXL. Your courier will depend on the size and weight of the items on your order.
For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with ArrowXL.
Tracking is provided for all orders dispatched from our warehouse.
If you order a Terma product, your item(s) will be coming directly from their warehouse.
The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.
-
Can I choose a specific time or day for my delivery?
If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.
We are currently unable to request specific delivery time slots with our couriers.
Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.
-
Can I upgrade my delivery?
Once dispatched, your order is sent on a next working day delivery service. This is the fastest available service, so we are unable to upgrade your delivery any further.
-
Can I send orders to a different address?
You can change the shipping address to a different address if your billing address matches what's registered against your payment method.
However, this can only be done when placing the order.
We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.
Your chosen heating system:
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
- Δ30 = Low temperature systems e.g heat pumps.
