Guarantee Length: 3 Years

Collection: Derry Traditional

Supplied with: TRV Valve, Lockshield and Fitting Instructions Included

Colour: Chrome

Finish: Polished

Heat Source: Central Heated/Hot Water

Material: Brass

Style: Traditional

Product Assurances: CE Marked,3 Years

Fitting Type: Corner

Sensor Type: Wax

SKU DER-TRV-TRCD-WGH-CC

GTIN:5056675405294

Dry Mass (kg):0.845kg

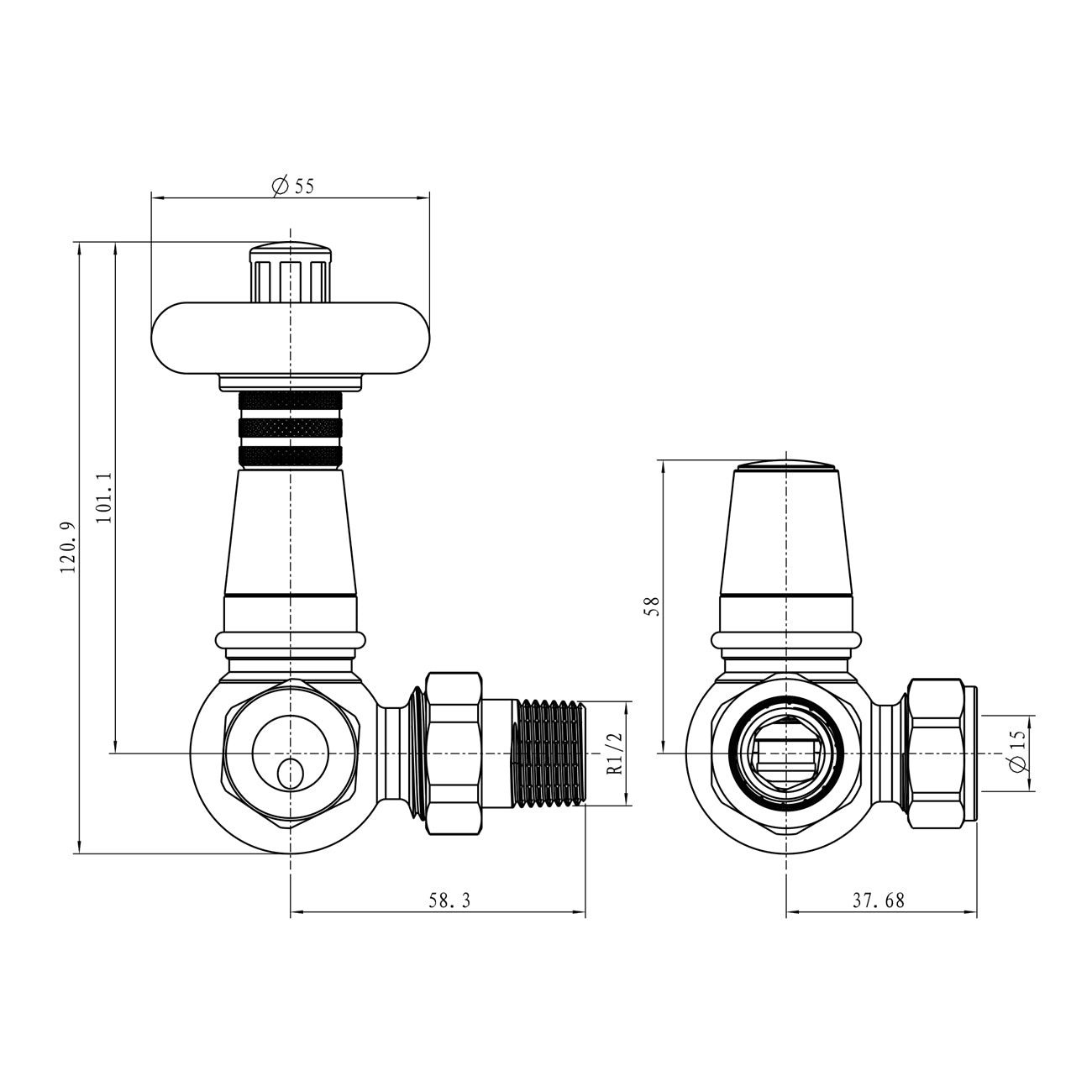

Height: 121mm

Width:86mm

Control Type: Multi Temperature Control

Connection

These valves have a 1/2" BSP radiator connection and so will fit all radiators and towel rails in the UK. The other connection to consider is that of your pipework, these valves have a 15mm pipework connection and so will fit pipework of the same size. We have these valves available in 8mm and 10mm for those with microbore pipework.

Fitting Type

Corner valves also provide a 90-degree connection – like angled valves do – but for different pipework placement:

  • Pipework comes out of the wall, and the radiator connection is on the side.
  • Pipework comes out of the wall and the radiator has connections at the bottom.
  • Pipework comes out from the wall and bends up and the radiator connection is on the side, but the valve itself will protrude in front of the radiator, so where this is the case, we recommend Angled radiator valves.
All of our corner radiator valves come with matching lockshield valves to be fitted on the return side of the radiator or towel rail.Control Type

Thermostatic Radiator Valves, otherwise known as TRVs, provide multi temperature control of the radiators in your home – saving energy and money! These valves have wax sensor mechanisms inside that shut off the flow of hot water to the radiator when the room temperature reached the desired level (which you set using the grooves on the TRV head as a guide – the more grooves showing, the higher the room temperature). All of our Thermostatic radiator valves come with frost protection mode, which automatically opens the valve a little bit, even when fully switched off if the temperature of the room drops below a certain level – preventing your heating system, radiator and pipe from damage caused by frozen water.

Material

These valves are made from high quality brass, which means they are strong and durable and will look great on your radiator or towel rail for years to come!

Colour

Chrome is a great colour to create some shine, without the need for a bold bright colour. With a naturally reflective polished finish, these can be great for smaller rooms to give the illusion of extra space. Chrome also goes with pretty much every colour of radiator or towel rail so if you want to play it safe, play it chrome.

Don’t forget to add some matching pipe covers to your basket to complete the overall look and hide unsightly pipework!

  • Free delivery (UK Mainland, Northern Ireland/Highlands/Islands)
  • Once dispatched, all orders are sent on a Next Working Day delivery service
  • We deliver between 8am and 6pm
  • Contact us to delay delivery/request a specific day
  • Limitless (that's right, no time limit!) returns
  • Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
  • Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
  • Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
  • If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
  • Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
  1. How can I contact you?

    You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.

  2. Where do you deliver?

    We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.

    We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.

  3. Who will deliver my order?

    Our 2 main couriers for UK Radiators products are DX Express and ArrowXL. Your courier will depend on the size and weight of the items on your order.

    For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with ArrowXL.

    Tracking is provided for all orders dispatched from our warehouse.

    If you order a Terma product, your item(s) will be coming directly from their warehouse.

    The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.

  4. Can I choose a specific time or day for my delivery?

    If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.

    We are currently unable to request specific delivery time slots with our couriers.

    Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.

  5. Can I upgrade my delivery?

    Once dispatched, your order is sent on a next working day delivery service. This is the fastest available service, so we are unable to upgrade your delivery any further.

  6. Can I send orders to a different address?

    You can change the shipping address to a different address if your billing address matches what's registered against your payment method.

    However, this can only be done when placing the order.

    We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.

Read more FAQs

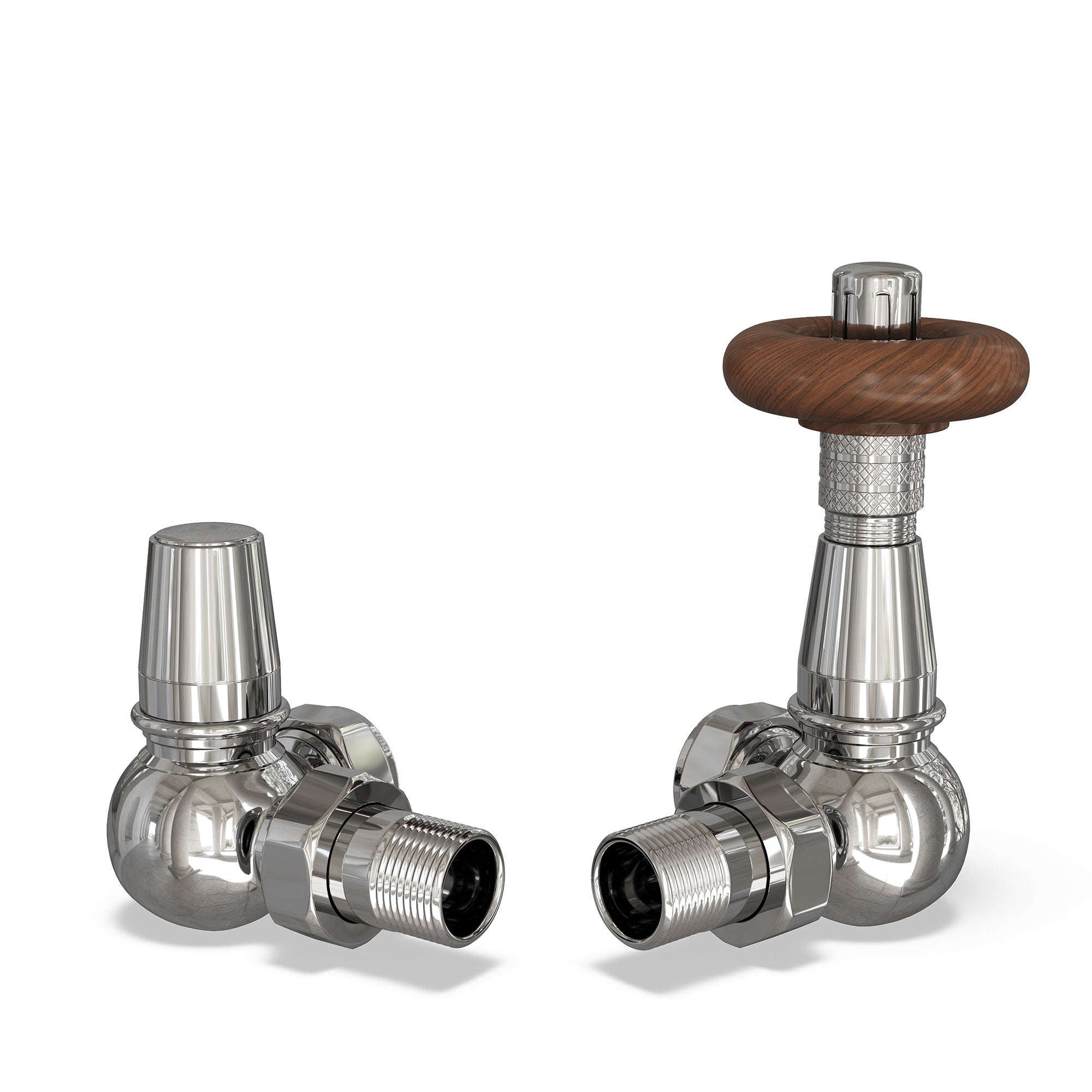

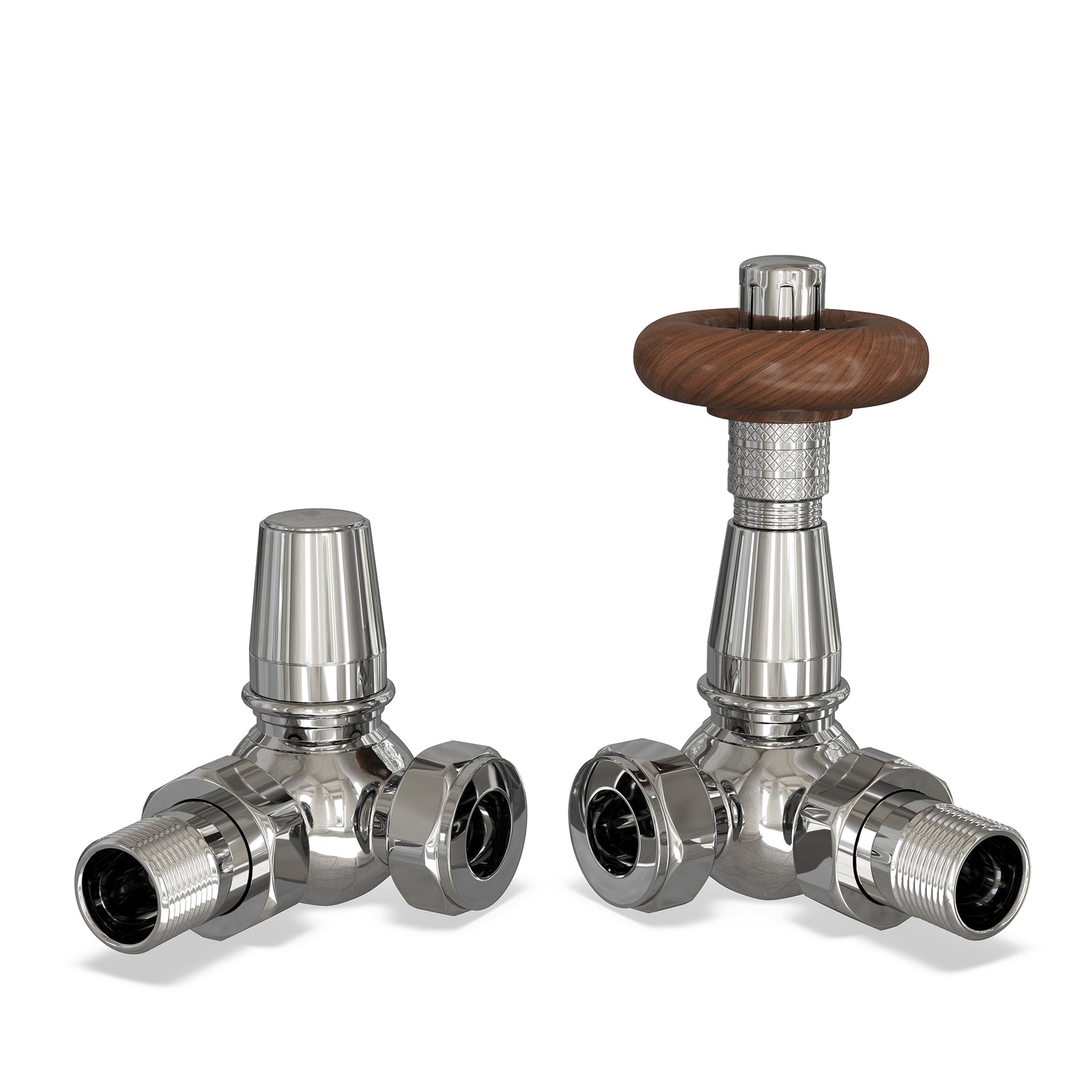

Derry Traditional - Chrome Thermostatic Radiator Valve & Lockshield Corner 15mm
