Need help calculating the heat output for your room?
Guarantee Length: 10 Years
Collection: EasyFit
Heat Source: Central Heated/Hot Water
Material: Stainless Steel Body
Product Assurances: CE Marked,10 Years
SKU EZF03
GTIN:5060123340532
Dry Mass (kg):0.55kg
Width:34mm
Summary

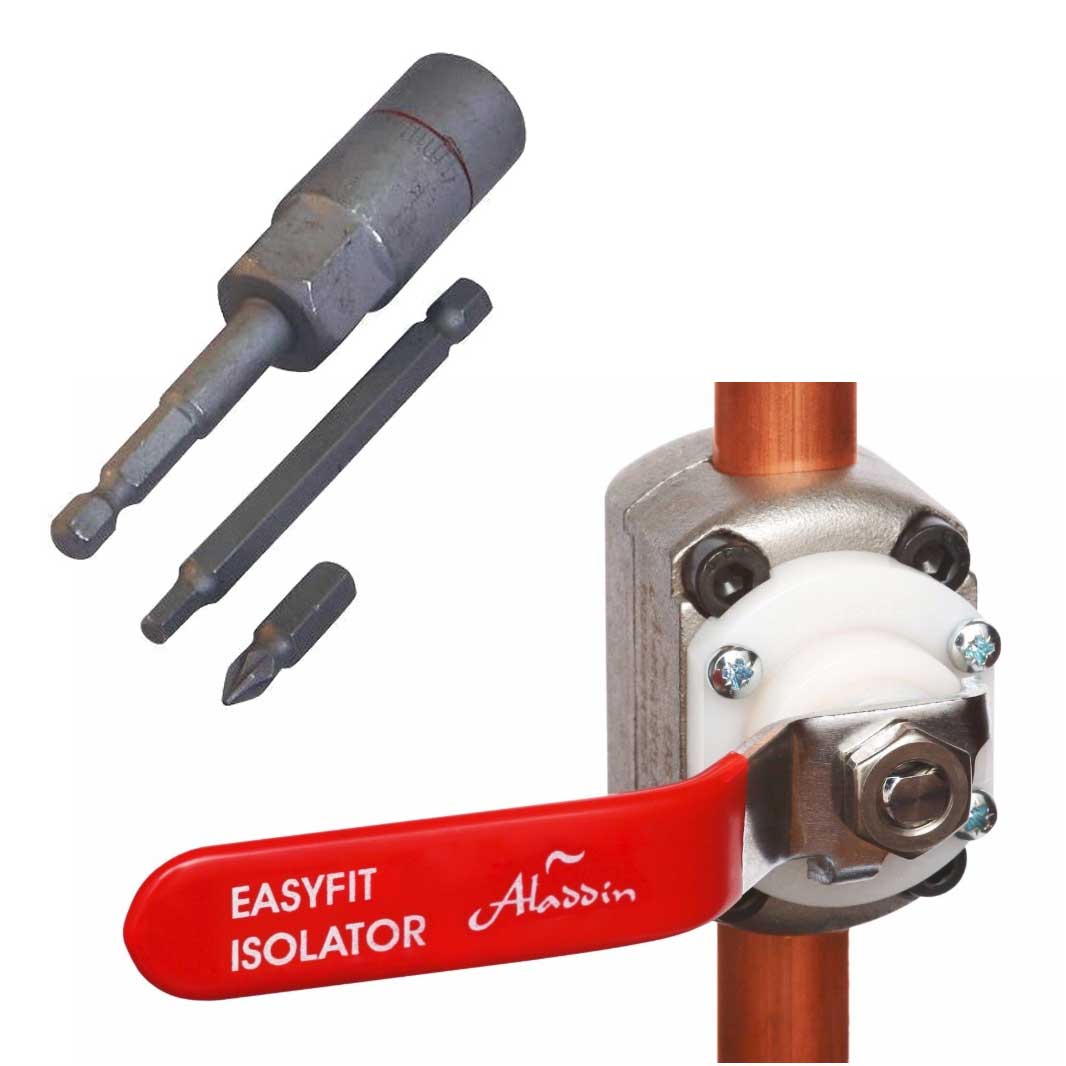

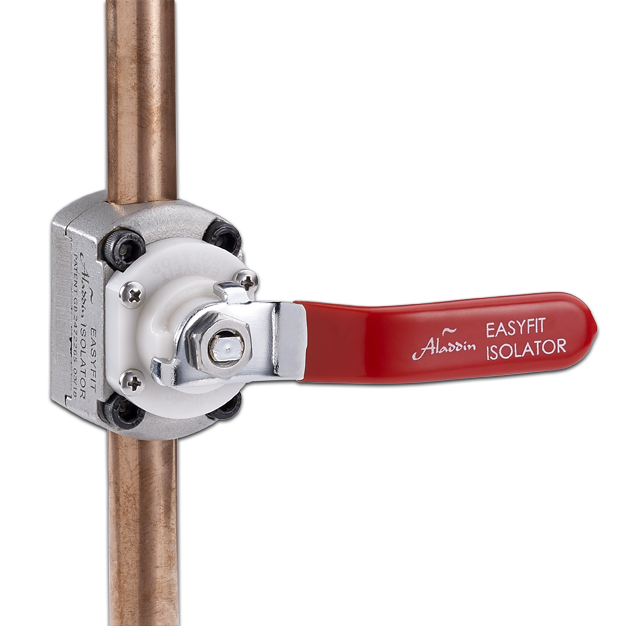

- The Aladdin EasyFit Isolator enables an isolation valve to be inserted quickly and safely in a pipe that can have cold or hot water flowing through it under high pressure.
- It provides an effective and robust product for all plumbers, maintenance engineers, water companies, housing associations and the DIY market.

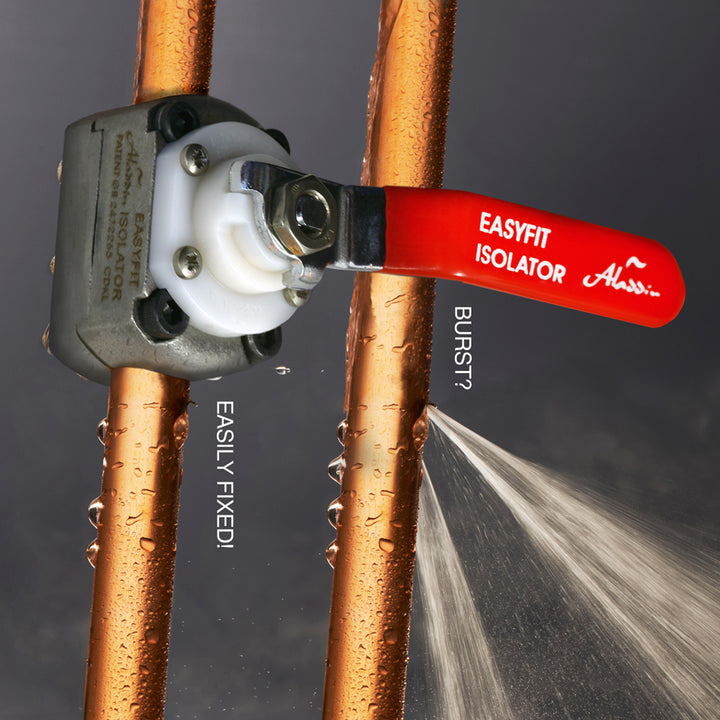

- Use the EasyFit Isolator as an emergency shut-off for a leaking pipe or when the mains stopcock is seized or inaccessible or when you need to isolate a mains water feed to a multi-occupancy building or to maintain a component in a heating system.
- The EasyFit Isolator saves time cooling, draining down, refilling and returning to de-aerate.
- The bigger the system, the bigger the saving.
- No more freezing kits and the risk that an ice plug will fail.
- ‘WRAS Approved Stopcock’.

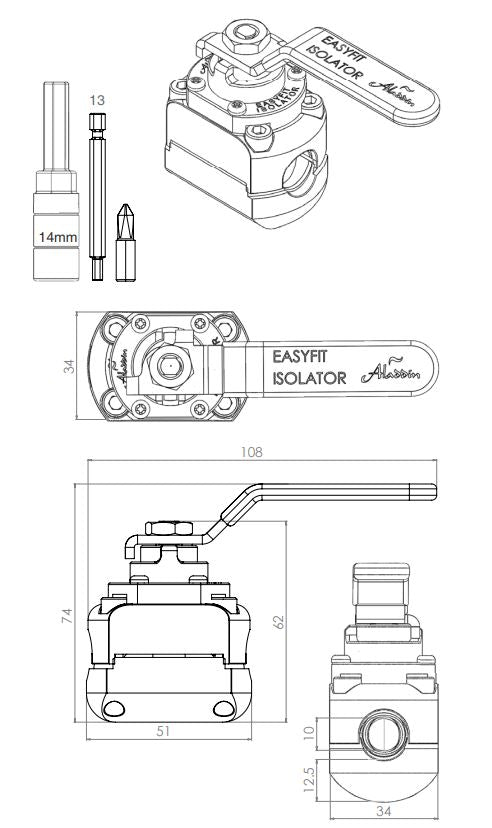

Specification
- 15mm Range (14.7mm – 15.045mm) Copper / PEX Multi-layer pipe.
- Operating pressure 16bar at 85°C
- WRAS Approved
- 10 year guarantee
- Stainless steel body
- Incorporates an on-off valve for ongoing use: Large bore – full flow.

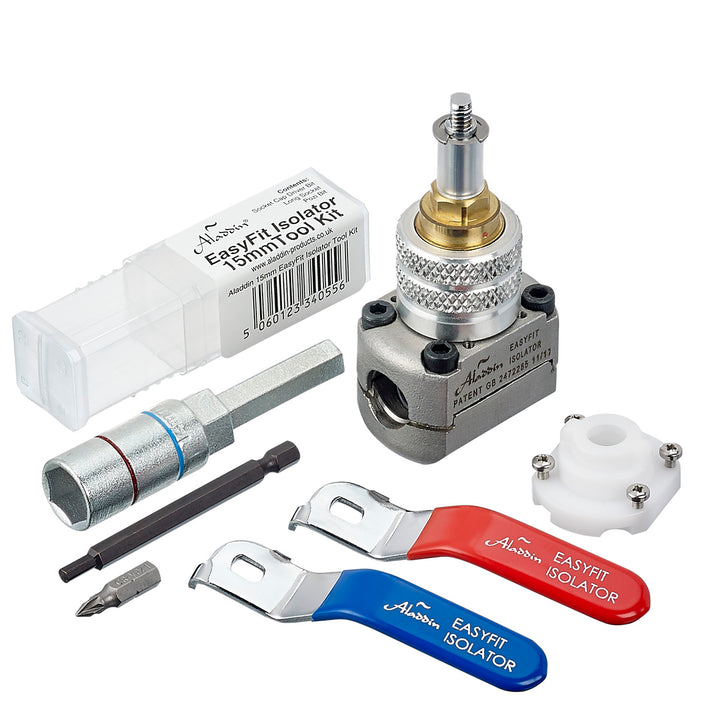

- Must be installed using an Aladdin Tool Kit.
Benefits
- Reduces overall job costs versus freezing or draining down by time-saving.
- The Aladdin EasyFit Isolator takes 3-5 minutes to fit; the alternatives are either draining the system or using gas or electric pipe-freezing, any of which can take 30-50 minutes.
- Insterts a large-bore on/off valve, with a flow-rate reduction of just 2%.
- Avoids the flooding risk{ice-plug fail}and health & safety risk{freeze-burn}inherent in freezing.
- is a substabtially “greeber” solution than:
– Gas-freezing :using the Aladdin EasyFit Isolator avoids emitting HFCs(hydrodluorocarbon gases), environmentally harmful “greenhouse” gases.
– Draining-down: using the Aladdin EasyFit Isltator avoids wasting water; and for hot water, avoids the reqirement to consume energy to heat the re-fill.
– Electric-freezing: avoids the consumption of considerable electricity as well as the capital cost or rental of the electric-freezing equipment.
Downloads
Easyfit Isolator Brochure 2019- Free delivery (UK Mainland, Northern Ireland/Highlands/Islands)
- Once dispatched, all orders are sent on a Next Working Day delivery service
- We deliver between 8am and 6pm
- Contact us to delay delivery/request a specific day
- Limitless (that's right, no time limit!) returns
- Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
- Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
- Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
- If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
- Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
-
How can I contact you?
You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.
-
Where do you deliver?
We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.
We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.
-
Who will deliver my order?
Our 2 main couriers for UK Radiators products are DX Express and ArrowXL. Your courier will depend on the size and weight of the items on your order.
For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with ArrowXL.
Tracking is provided for all orders dispatched from our warehouse.
If you order a Terma product, your item(s) will be coming directly from their warehouse.
The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.
-
Can I choose a specific time or day for my delivery?
If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.
We are currently unable to request specific delivery time slots with our couriers.
Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.
-
Can I upgrade my delivery?
Once dispatched, your order is sent on a next working day delivery service. This is the fastest available service, so we are unable to upgrade your delivery any further.
-
Can I send orders to a different address?
You can change the shipping address to a different address if your billing address matches what's registered against your payment method.
However, this can only be done when placing the order.
We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
- Δ30 = Low temperature systems e.g heat pumps.
