Emmeline II - Pencil Grey Cast Iron Column Radiator H670mm x W429mm 2 Column - Floor Standing
Product code: 53482
Authentic cast-iron character built around your space
Bring genuine cast-iron character into the room with this Emmeline Pencil Grey column radiator. Built from cast iron with 6 sections and a 2-column construction, it delivers the deep, weighty look associated with traditional radiators while working with a plumbed hot-water central-heating system.
Why choose this radiator?
- Add authentic cast-iron character to your space: Cast iron gives the radiator the solid, substantial feel associated with traditional heating.
- Create the level of traditional presence you want: The 2-column construction adds depth and heat-emitting surface over a single-column build while remaining noticeably slimmer than deeper 3-, 4- or 6-column versions.
- Use your wall space more effectively: The compact W429mm width helps bring traditional cast-iron style into a smaller stretch of wall.
- Make the radiator part of your interior: The Pencil Grey finish adds subtle depth and texture to the classic cast-iron form, creating a more understated alternative to black.
- Choose valves to suit your installation: Radiator valves are not included, so you can choose compatible valves separately to suit your pipework and the look you want to achieve rather than paying for a fixed valve style you may not want.
- See clearly what mounting parts are included: Masonry fixings are included, while wall brackets are not listed as supplied for this version, so you can see clearly what arrives before installation.
- Buy with confidence in recognised radiator testing: The product is compliant with EN 442-1:2014, giving you recognised assurance around radiator performance and testing rather than relying on an unsupported heat-output claim.
- Long-term reassurance: The 20 years guarantee gives added confidence in choosing a cast-iron radiator intended to remain part of the home for many years.
What’s included
- Masonry Fixings
- Bleed Valve
Key technical details
- Heat output: 517 watts / 1764 BTUs at Delta T50

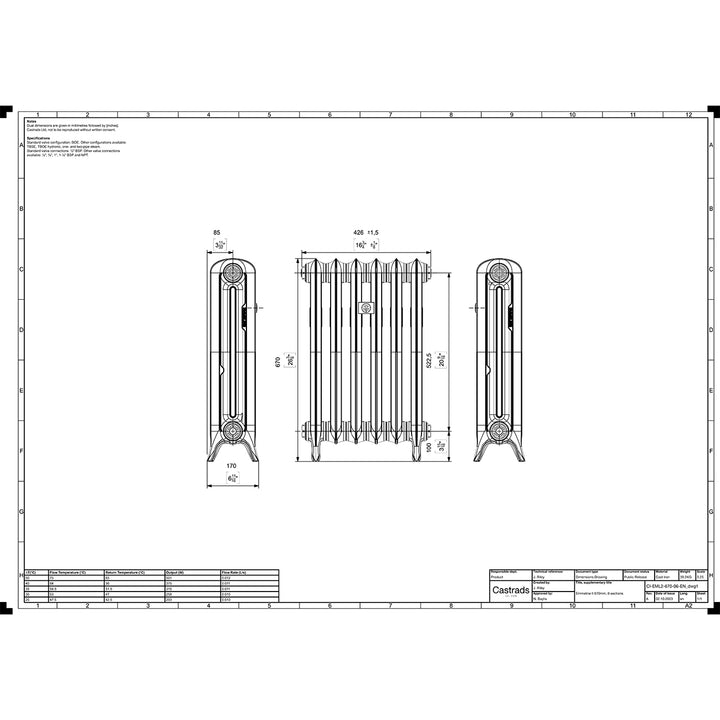

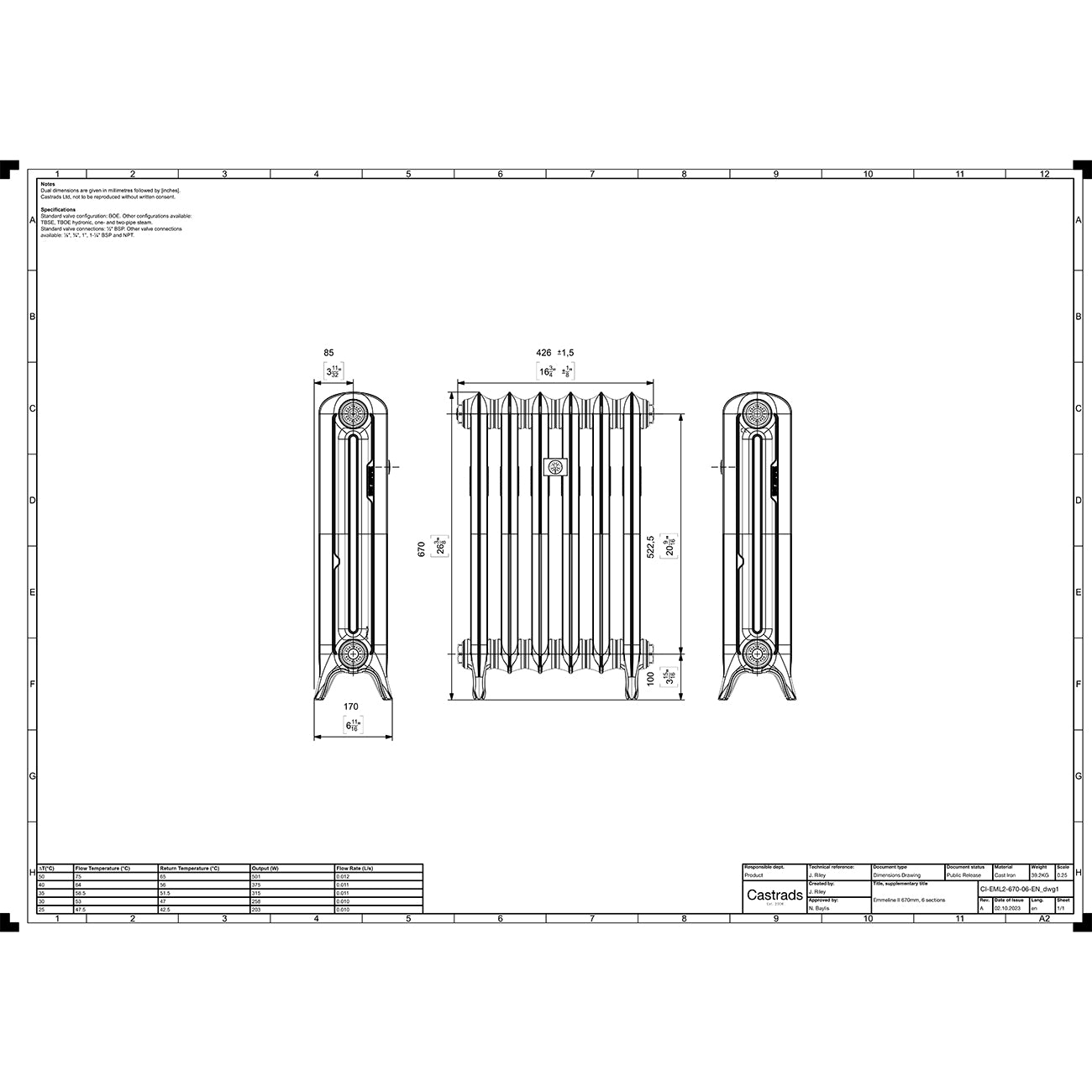

- Dimensions: H670mm x W429mm x D170mm
- Projection: 170mm
- Pipe Centres: 429mm + Valves
- Product Assurances: UKCA Marked, BS EN 442 Certified, 20 Years Guarantee
Need help calculating the heat output for your room?
Guarantee Length: 20 Years
Collection: Emmeline
Supplied with: Masonry Fixings, Bleed Valve
Colour: Pencil Grey
Heat Source: Central Heated/Hot Water
Material: Cast Iron
Orientation: Horizontal
Style: 2 Column
Product Assurances: Compliant with EN 442-1:2014 Radiator Standard, 20 Years Guarantee
SKU EMPEN-COL2-6-670429-FS
Connection Size/Type: 1/2" BSP
Dry Mass (kg):39.2kg
Height: 670mm
Width:429mm
Pipe Centres: 519mm
Projection: 170
BTUs (T30): 918.00
BTUs (T50): 1764.00
Watts (T30):269.00
Watts (T50): 517.00
Number of Sections: 6
Number of Columns: 2
Maximum Operating Pressure (kPa): 1000.00
Depth: 170mm
Download: Declaration of Performance
Download: Installation Instructions
- Free delivery options (UK Mainland, Northern Ireland/Highlands/Islands)
- Next working day delivery options (selected products & locations)
- We deliver between 8am and 6pm
- Contact us to delay delivery/request a specific day
- Limitless (that's right, no time limit!) returns on eligible items.
- Free of charge: either we will arrange collection/send a returns label, or we’ll refund your reasonable return postage costs.
- Returns for reasons other than damage or faults can only be accepted if the item is unused, unfitted, and returned in its original packaging and resaleable condition.
- Please note that made-to-order, personalised, or bespoke items manufactured to your specification are exempt from the standard cancellation rights under the Consumer Contracts Regulations and cannot be returned unless faulty or damaged.
- Whilst all our products pass strict quality standards, on very rare occasions an item may arrive damaged. We ask that you inspect the packaging before signing for delivery and note any visible damage when signing, or refuse the delivery and state damage as the reason.
- If you discover damage after accepting delivery, please contact us as soon as possible with photographs of the damage and packaging.
- Once damage or a fault has been confirmed, we will either replace the item completely free of charge or provide a full refund, including any applicable delivery charges.
-
How can I contact you?
You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.
-
Where do you deliver?
We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.
We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.
-
Who will deliver my order?
Our two primary couriers for UK Radiators products are Royal Mail and DX Express. Your courier will depend on the size and weight of the items on your order.
For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with DX.
Tracking is provided for all orders dispatched from our warehouse.
If you order a Terma product, your item(s) will be coming directly from their warehouse.
The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.
-
Can I choose a specific time or day for my delivery?
If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.
We are currently unable to request specific delivery time slots with our couriers.
Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.
-
Can I upgrade my delivery?
We offer the option to upgrade delivery to either Two Man VIP delivery to a room of your choice, or Next Working Day delivery. Upgrade availability is dependant on the size of product and delivery location. Once dispatched, your order is sent on the delivery service chosen at checkout. This cannot be changed after dispatch.
-
Can I send orders to a different address?
You can change the shipping address to a different address if your billing address matches what's registered against your payment method.
However, this can only be done when placing the order.
We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.
Emmeline II - Pencil Grey Cast Iron Column Radiator H670mm x W429mm 2 Column - Floor Standing
Product code: 53482
Emmeline II - Pencil Grey Cast Iron Column Radiator H670mm x W429mm 2 Column - Floor Standing
The Alpha White Column Radiator (H500mm × W768mm) offers the perfect mix of classic elegance and dependable performance.
All transactions Secured and Guaranteed
Your chosen heating system:
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
- Δ30 = Low temperature systems e.g heat pumps.
