Need help calculating the heat output for your room?
Guarantee Length: 8 years
Collection: Hex
Supplied with: Wall Bracket Kit, Air Vent and Masonry Fixings Included
Colour: Sparkling Grey
Finish: Silk - Smooth
Heat Source: Central Heated/Hot Water
Material: Steel
Orientation: Vertical
Style: Square Tube
Product Assurances: CE Marked, EN442 Certified,8 years
Panel Type: Single Panel
SKU WGH2X170057-SG
GTIN:5901804902468
Dry Mass (kg):10.0kg

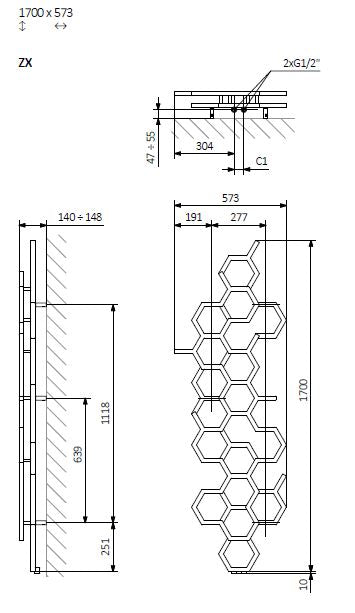

Height: 1700mm
Width:573mm
Pipe Centres: 50mm

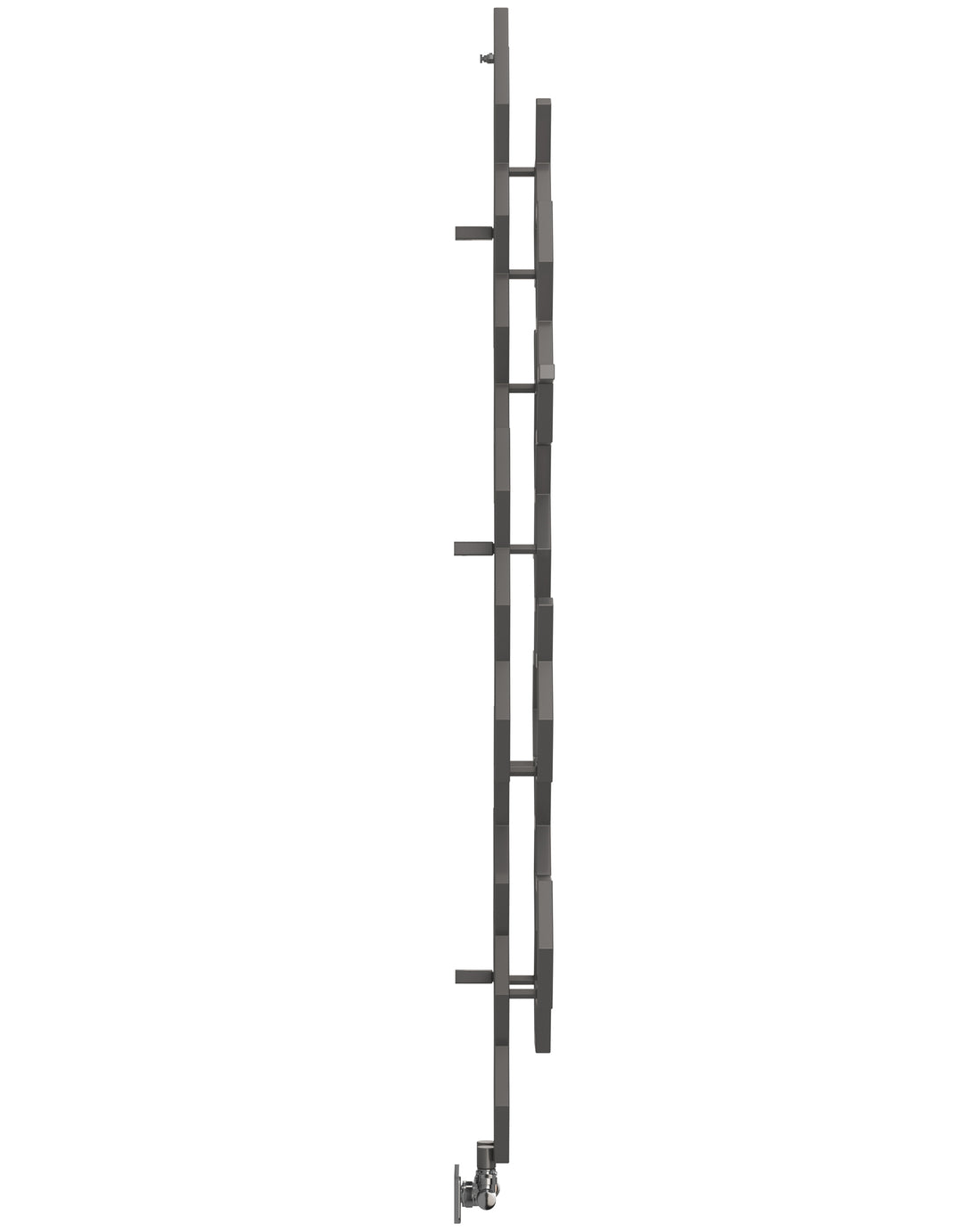

Projection: 140mm - 148mm
Wall to Pipe Centres: 47mm - 55mm
BTUs (T30): 880.00
BTUs (T40):1276.00
BTUs (T50): 1706.00
Watts (T30):258.00
Watts (T40): 374.00
Watts (T50): 500.00
Depth: 22mm
Download: Declaration of Performance

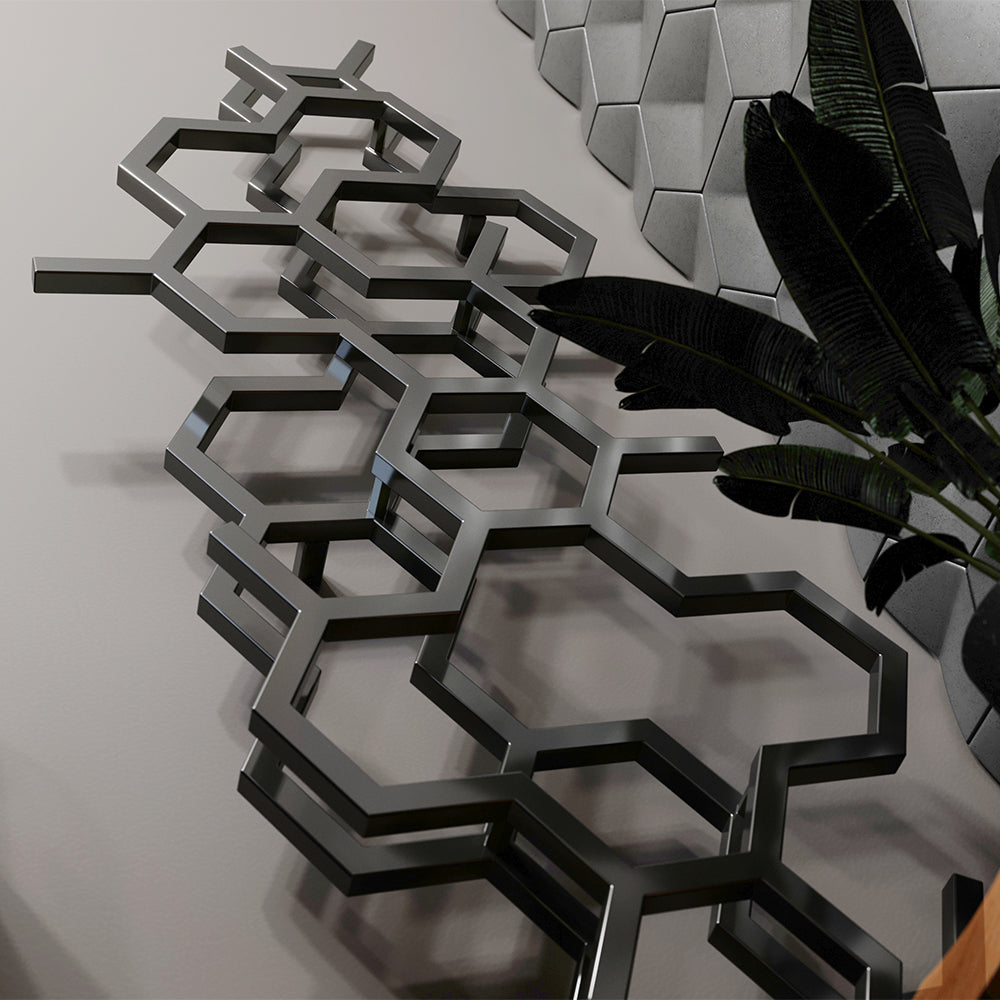

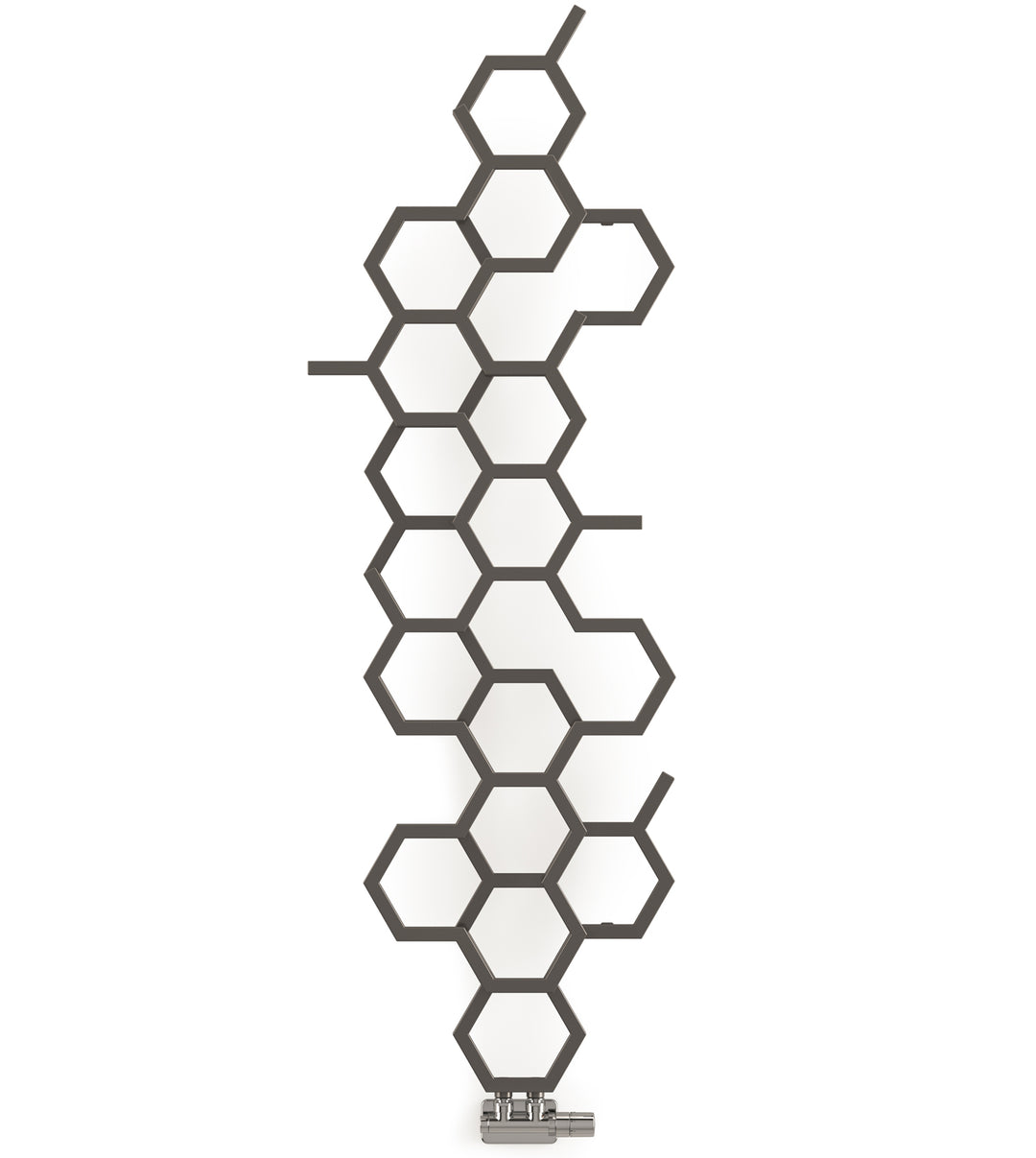

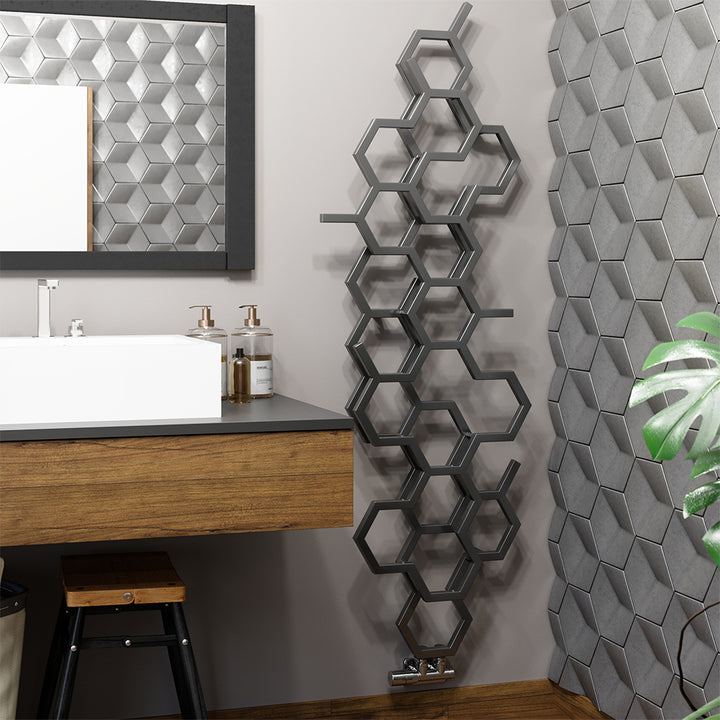

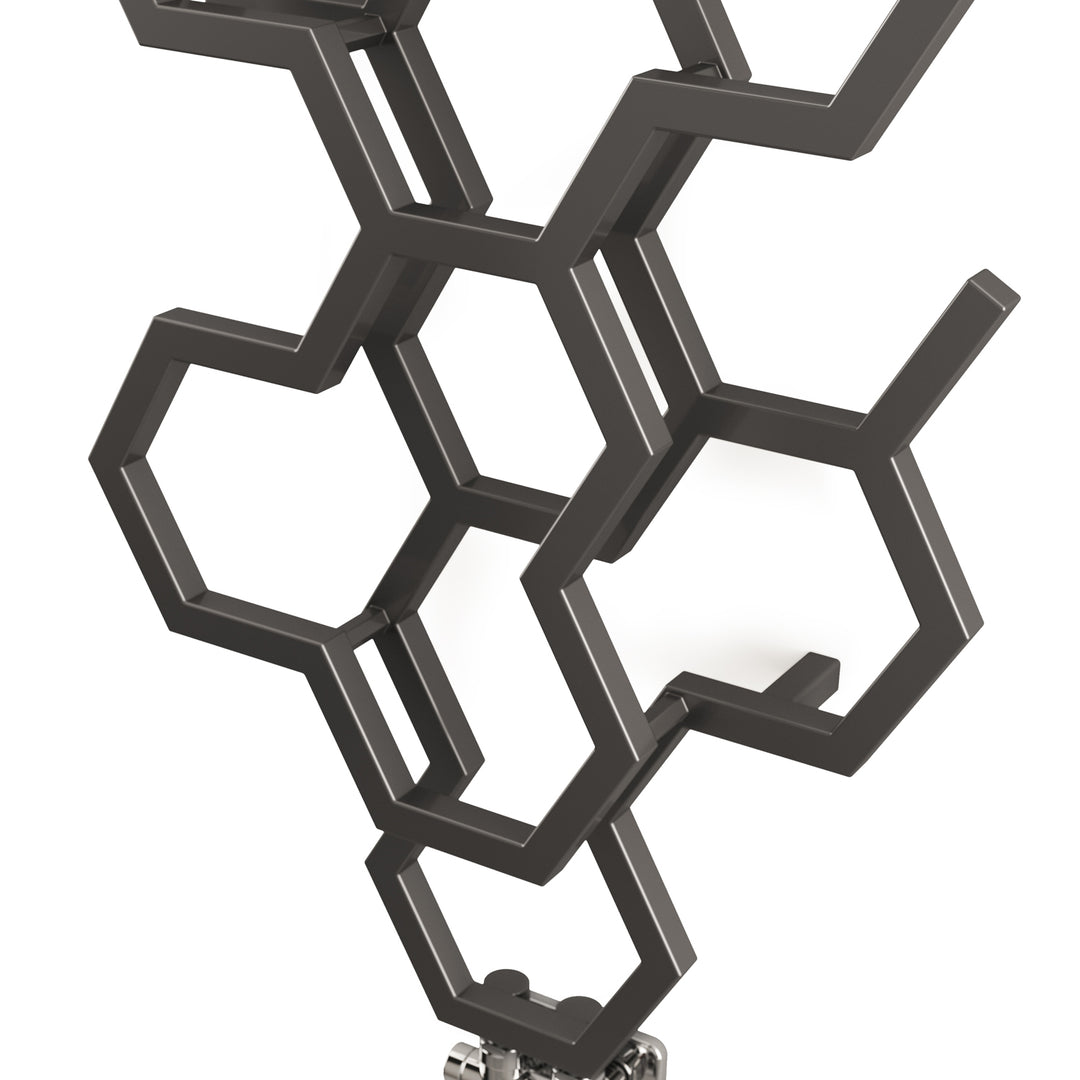

Terma aims to think differently when conceiving its radiator designs and the Hex is in its own class, made from hexagonal shapes across a multi layered design with breaks in the formation of the each hex for extra design distinction. Hex is a true statement piece to finish off your room. Place Hex against a feature wall of exposed brick or alongside some hexagonal wall tiles or a piece of art which echoes the form of the radiator - be creative. Hex doesn't simply sit on the wall - but looks like it has grown out of your wall. The little peg type parts which jut out are perfect for hanging your kitchen / bathroom towels to dry if you wish. The Sparkling Grey colour has a silk. smooth finish. Terma offers a 150x50mm colour chip of this finish should you wish to see the colour prior to purchase. Hex features 50mm pipe connections so we suggest matching this with a 50mm integrated valve - Terma stock a valve and pipe masking set in a matching colour to this black radiator for a matching finish. Note: This radiator is a portrait (vertical) model and cannot be installed horizontally, as it will not function correctly horizontally.
- Free delivery (UK Mainland, Northern Ireland/Highlands/Islands)
- Once dispatched, all orders are sent on a Next Working Day delivery service
- We deliver between 8am and 6pm
- Contact us to delay delivery/request a specific day
- Limitless (that's right, no time limit!) returns
- Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
- Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
- Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
- If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
- Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
-
How can I contact you?
You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.
-
Where do you deliver?
We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.
We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.
-
Who will deliver my order?
Our 2 main couriers for UK Radiators products are DX Express and ArrowXL. Your courier will depend on the size and weight of the items on your order.
For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with ArrowXL.
Tracking is provided for all orders dispatched from our warehouse.
If you order a Terma product, your item(s) will be coming directly from their warehouse.
The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.
-
Can I choose a specific time or day for my delivery?
If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.
We are currently unable to request specific delivery time slots with our couriers.
Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.
-
Can I upgrade my delivery?
Once dispatched, your order is sent on a next working day delivery service. This is the fastest available service, so we are unable to upgrade your delivery any further.
-
Can I send orders to a different address?
You can change the shipping address to a different address if your billing address matches what's registered against your payment method.
However, this can only be done when placing the order.
We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.
Your chosen heating system:
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
- Δ30 = Low temperature systems e.g heat pumps.
Need help calculating the heat output for your room?
Guarantee Length: 8 years
Collection: Hex
Supplied with: Wall Bracket Kit, Air Vent and Masonry Fixings Included
Colour: Sparkling Grey
Finish: Silk - Smooth
Heat Source: Central Heated/Hot Water
Material: Steel
Orientation: Vertical
Style: Square Tube
Product Assurances: CE Marked, EN442 Certified,8 years
Panel Type: Single Panel
SKU WGH2X170057-SG
GTIN:5901804902468
Dry Mass (kg):10.0kg
Height: 1700mm
Width:573mm
Pipe Centres: 50mm
Projection: 140mm - 148mm
Wall to Pipe Centres: 47mm - 55mm
BTUs (T30): 880.00
BTUs (T40):1276.00
BTUs (T50): 1706.00
Watts (T30):258.00
Watts (T40): 374.00
Watts (T50): 500.00
Depth: 22mm
Download: Declaration of Performance
