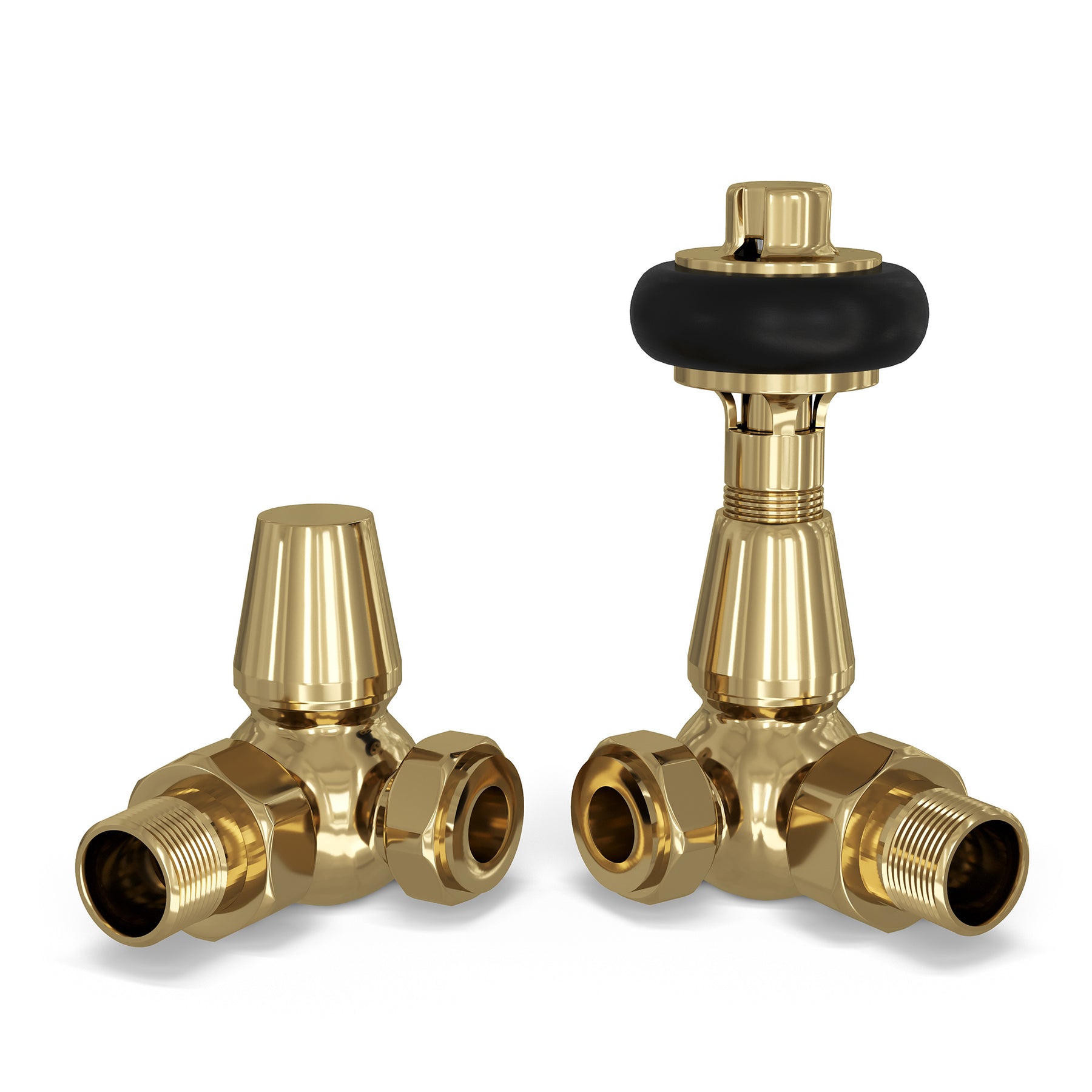

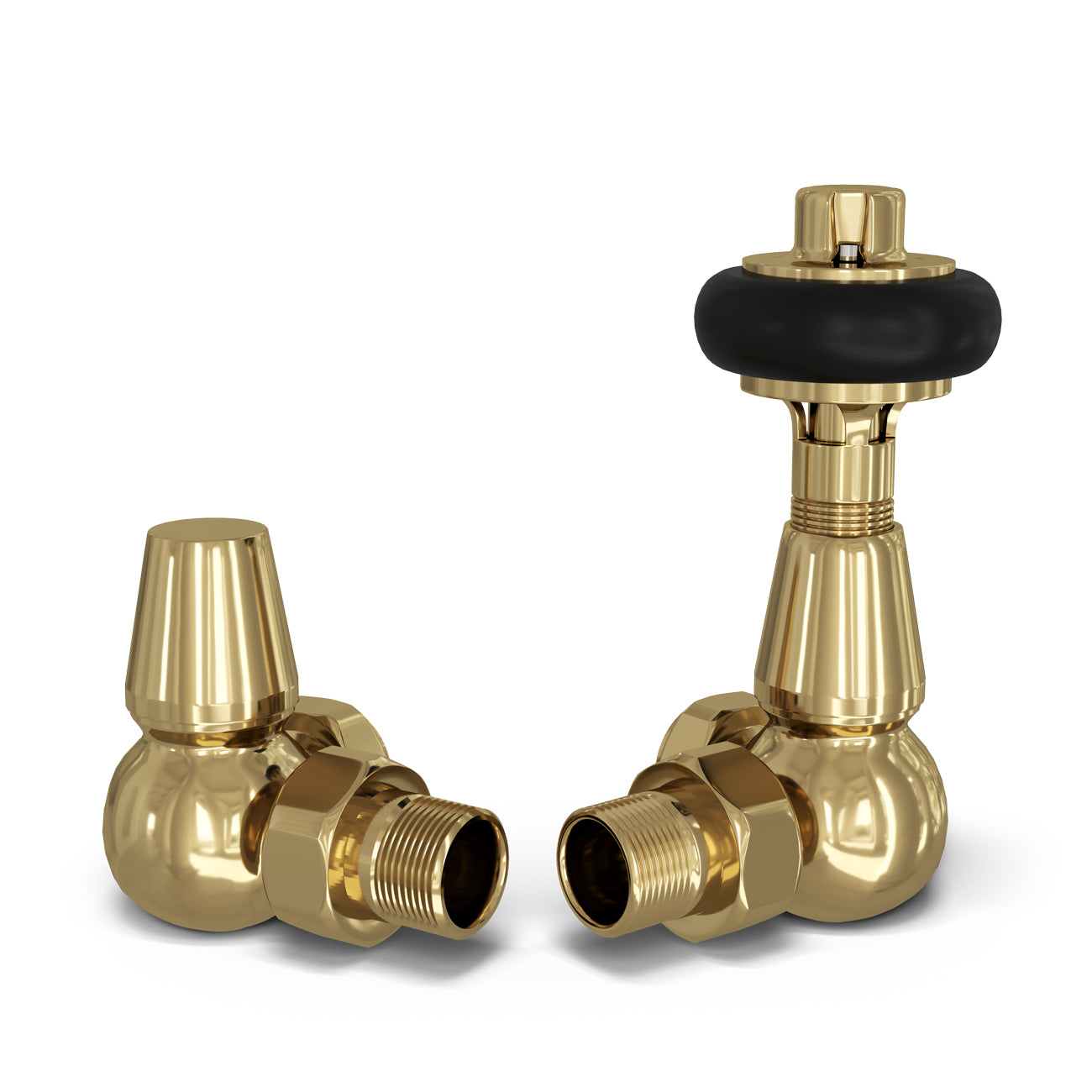

Signature Wooden Head - Polished Brass Thermostatic Radiator Valve & Lockshield Corner 15mm
Product code: 20862
Thermostatic control with a coordinated valve set
Designed to combine individual radiator control with a coordinated finish, this Polished Brass Signature Wooden Head thermostatic valve set includes both the TRV and matching lockshield. Its corner layout suits the relevant pipe route, and the wax sensing mechanism adjusts the valve as surrounding temperature changes.
Why choose these radiator valves?
- Set each room's warmth more independently: Instead of leaving the radiator fully open, the TRV adjusts the flow of hot water as the surrounding room temperature changes.
- Use less unnecessary heat in rooms that are already warm: Once the room needs less heat, the TRV can reduce flow through that radiator, helping make more efficient use of the hot water being circulated.
- Add protection during very cold weather: The frost setting provides a safeguard for very cold conditions by allowing the valve to open slightly when temperatures fall sufficiently low.
- Simplify the purchase with both valves supplied: The set includes the TRV and matching lockshield together, giving you both radiator valves in one coordinated purchase.
- Plan the radiator connection with the right valve shape: Corner valves are suited to side-entry radiators where the pipework comes directly out of the wall.
- Tailor radiator output to the room's needs: The multi-temperature head lets you select different heating levels to suit how much warmth the room needs.
- Let the valve respond automatically to room temperature: The wax sensor changes with the surrounding temperature, driving the valve's automatic thermostatic response.
- Choose a finish that complements the installation: Its traditional form suits column radiators and interiors where the valves are intended to contribute to the overall look. The brushed & lacquered Polished Brass finish helps coordinate the valves with the radiator and nearby fittings.
- Choose a valve set backed beyond installation: A 5 years guarantee gives you longer-term reassurance beyond the initial installation.
What's included
- Thermostatic radiator valve head with body
- Matching lockshield valve
- Decorator's cap
Key technical details
- Connection Size Type: 1/2 BSP
- Fitting Type: Corner
- Connection: 15mm
- Control Type: Multi Temperature Control
Need help calculating the heat output for your room?
Guarantee Length: 5 Years
Collection: Signature Wooden Head
Supplied with: TRV Valve Head, Lockshield and Fitting Instructions Included
Colour: Polished Brass
Finish: Brushed & Lacquered
Heat Source: Central Heated/Hot Water
Material: Brass
Style: Traditional
Product Assurances: CE Marked,5 Years
Fitting Type: Corner
Sensor Type: Wax
SKU TAL-TRV-TRCD-WH-ABC
GTIN:5056675416580
Dry Mass (kg):0.972kg

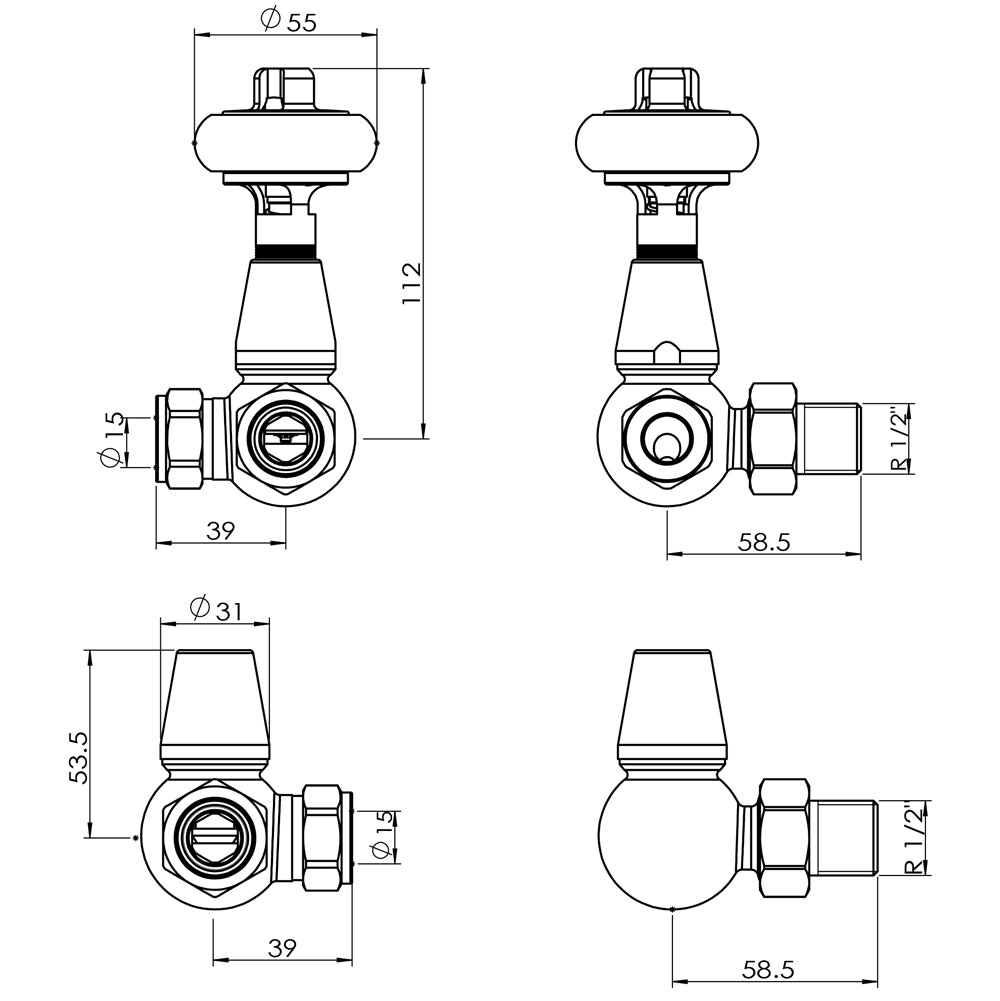

Height: 112mm
Width:86mm
Control Type: Multi Temperature Control
Flow Rate (kgs/h): 210
