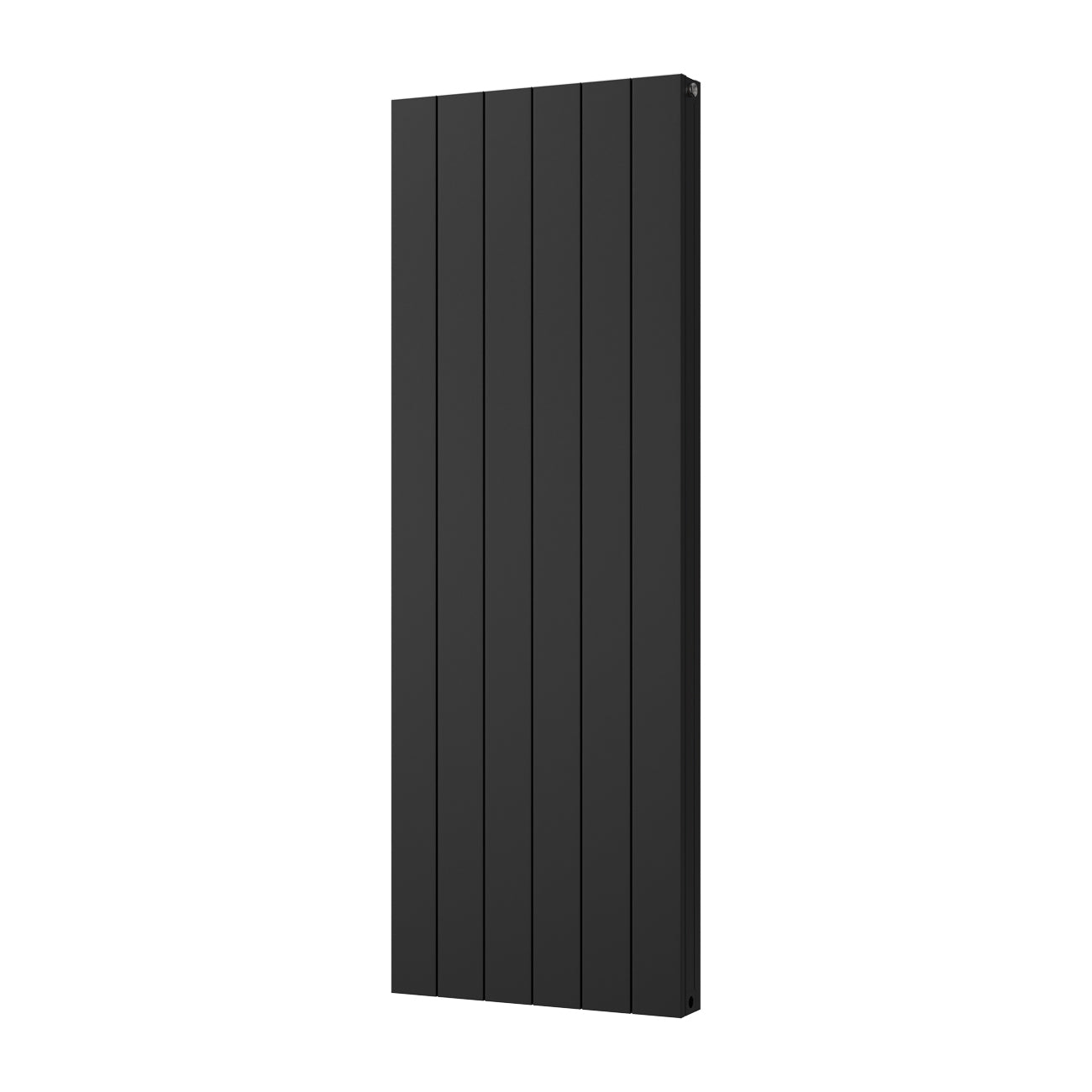

Thetford - Black Vertical Radiator Double Panel H1600mm x W560mm Smooth
Product code: 20699
Like stainless steel, aluminium radiators tend to have a higher price tag, but for good reason. In return for the extra pounds, you get the highest heat output compared to a radiator of the same size and water content in other materials which makes them great for compact spaces as well as open plan rooms. For those of us who are keen to do our bit for the environment, aluminium is by far the best choice. Because of the higher heat output, the aluminium radiator you purchase doesn't need to be as big, meaning it requires less water to be heated. Smaller radiator/less water + higher heat output/heating on for less time = as environmentally friendly as a radiator can (currently) get. This also means they are better for your bank account, so although you may need to spend some extra cash when you purchase, in the long run, you’ll be reducing your carbon footprint in your warm cosy home and be saving some money. Aluminium as a material also heats up quickly, which means that the radiator achieves its heat output quicker than other materials. This gives you more control over your heating system as a whole, reducing the amount of time you need your central heating to be on and therefore reducing the energy usage across your home.
StyleA popular pick for those looking to add a touch of design to their home, the flat style offers a sleek feel that will work with pretty much any décor. The hollow front and back panels, topped with chrome caps, are connected to two horizontal round tubes (these are called collectors) at the top and bottom. Vertical tubes run between these panels in the middle of the radiator. The hollow panels provide a greater surface area and therefore greater heat output (similar to the functionality of convector radiators).
PanelsDouble panel radiators have two panels, one behind the other. Ideal for those walls that have a lot of dead space, but the room still needs a lot of heat, double panels offer a much greater heat output than their single panel sisters while still taking up the same amount of wall space and in most cases, they have the same projection – so they wont stick out into the room too much.
ColourBlack, the colour that always fits and never fades. This matt black powder painted radiator is exactly what your home needs. Black radiators go well with anything. As a colour, there are few shades or hues that it does not complement. Whether providing effective shadow tones to an already dark background, or a striking contrast to more brightly coloured walls, black radiators rarely look out of place. As well as suiting a great variety of home styles, black is a very forgiving shade. It won't show dust, dirt, or rust like white so you know they will look great well into the future.
Heat SourceA central heating or hot water radiator is one that is plumbed into your homes central heating system. Whether you have a Combi boiler, gravity fed (conventional) system or a system with a cylinder, you can install this radiator.
AccessoriesThis radiator has G1/2” connections either side at the bottom and so the valves required will depend on your pipework (which is why they aren’t provided with the radiator):
- For pipework coming from the wall to the side of the radiator, use corner valves.
- For pipework coming from the floor and up to the side of the radiator, use angled valves.
- For pipework coming along the wall to meet the side of the radiator, use straight valves.
There are a few different types of valves available for you to choose from: Manual Valves provide easy on/off control – simply turn the valve by hand to allow the water from your central heating to pass through into the radiator or towel rail, just like a tap! If this radiator is going to be in the same room as your main boiler thermostat (usually a little box on the wall or the mantle, that you turn up and down) then we advise you to use manual valves over TRV’s because a TRV will conflict with your boiler thermostat and can cause temperature issues around the home. Thermostatic Valves (TRVs) provide multi temperature control of the radiators in your home – saving energy and money! These valves have sensor mechanisms inside that shut off the flow of hot water to the radiator when the room temperature reached the desired level! If your looking to reduce your carbon footprint while remaining cosy warm, then TRV’s are the way to go (provided they aren’t installed in the room where your main boiler thermostat is).
Need help calculating the heat output for your room?
Guarantee Length: 15 Years
Collection: Thetford
Supplied with: Wall Brackets,Masonry Fixings,Bleed Valve & Blanking Plug Included
Colour: Black
Finish: Matt
Heat Source: Central Heated/Hot Water
Ral Code: 9005
Material: Aluminium
Orientation: Vertical
Style: Flat Tube
Radiator Valves Included: No
Product Assurances: UKCA Marked, BSEN442 Certified,15 Years
Panel Type: Double Panel
SKU THER-16560SBD
Connection Size/Type: 1/2" BSP
GTIN:5056675417266
Dry Mass (kg):19.3kg
Height: 1600mm
Width:560mm
Number of Tubes: 12
Pipe Centres: 560mm + Valves
Projection: 116.5mm
Wall to Pipe Centres: 74.5mm
BTUs (T30): 2494.00
BTUs (T50): 4917.00
Watts (T30):731.00
Watts (T50): 1441.00
Water Content (l): 4.7
Number of Sections: 6
Maximum Operating Pressure (kPa): 1000.00
Depth: 84mm
Download: Declaration of Performance
Download: Installation Instructions
New content loaded
- Free delivery options (UK Mainland, Northern Ireland/Highlands/Islands)
- Next working day delivery options (selected products & locations)
- We deliver between 8am and 6pm
- Contact us to delay delivery/request a specific day
- Limitless (that's right, no time limit!) returns
- Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
- Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
- Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
- If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
- Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
-
How can I contact you?
You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.
-
Where do you deliver?
We deliver to the whole of the UK and Northern Ireland - including the highlands and islands.
We are currently unable to offer international delivery. However, you can place an order for collection and arrange to have a courier of your choice collect the order and delivery it to you.
-
Who will deliver my order?
Our two primary couriers for UK Radiators products are Royal Mail and DX Express. Your courier will depend on the size and weight of the items on your order.
For example a pair of valves will be sent to you with Royal Mail, whereas a Column radiator will be sent with DX.
Tracking is provided for all orders dispatched from our warehouse.
If you order a Terma product, your item(s) will be coming directly from their warehouse.
The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.
-
Can I choose a specific time or day for my delivery?
If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.
We are currently unable to request specific delivery time slots with our couriers.
Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 7am and 7pm.
-
Can I upgrade my delivery?
We offer the option to upgrade delivery to either Two Man VIP delivery to a room of your choice, or Next Working Day delivery. Upgrade availability is dependant on the size of product and delivery location. Once dispatched, your order is sent on the delivery service chosen at checkout. This cannot be changed after dispatch.
-
Can I send orders to a different address?
You can change the shipping address to a different address if your billing address matches what's registered against your payment method.
However, this can only be done when placing the order.
We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.
Thetford - Black Vertical Radiator Double Panel H1600mm x W560mm Smooth
Product code: 20699
Thetford - Black Vertical Radiator Double Panel H1600mm x W560mm Smooth
The Alpha White Column Radiator (H500mm × W768mm) offers the perfect mix of classic elegance and dependable performance.
All transactions Secured and Guaranteed
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
- Δ30 = Low temperature systems e.g heat pumps.
