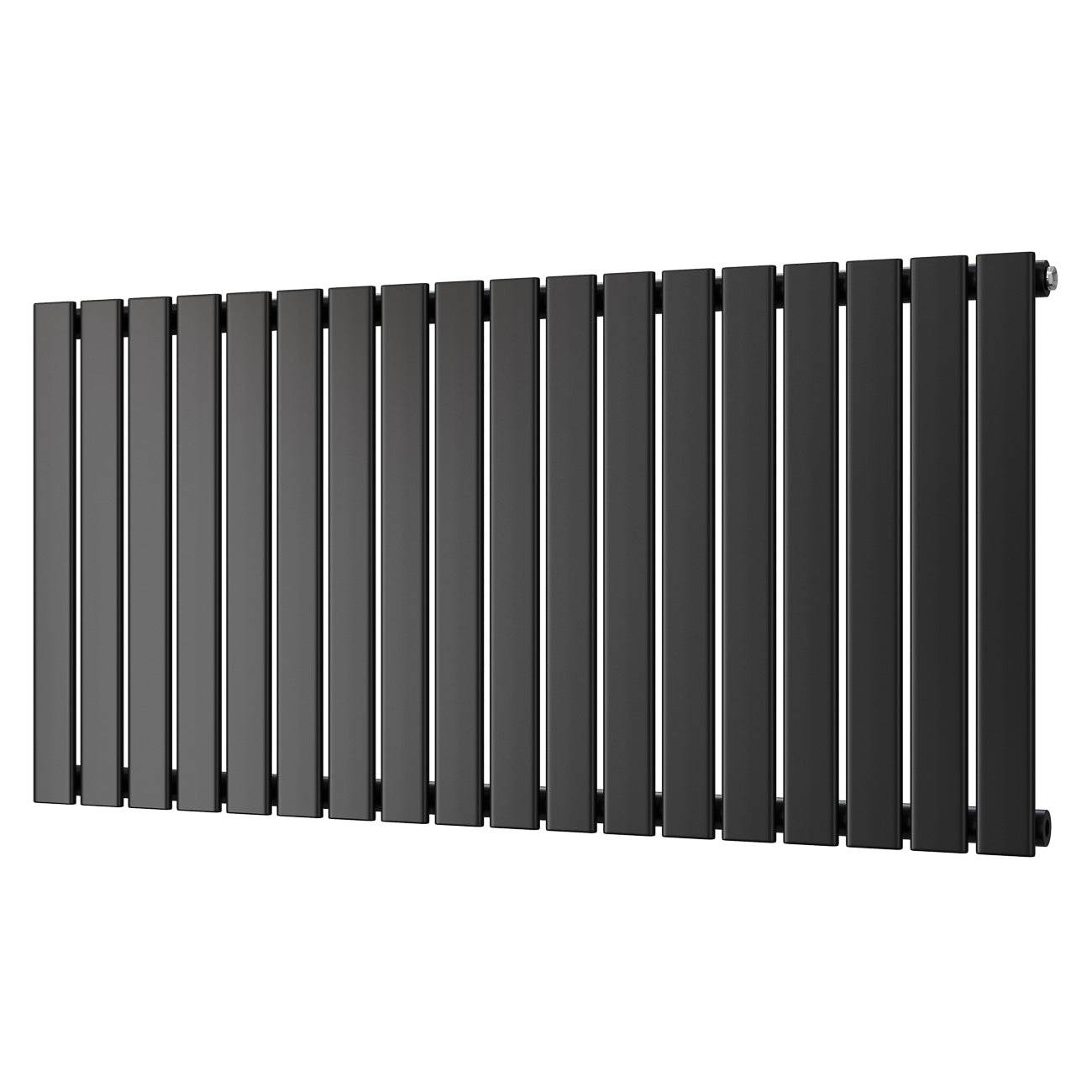

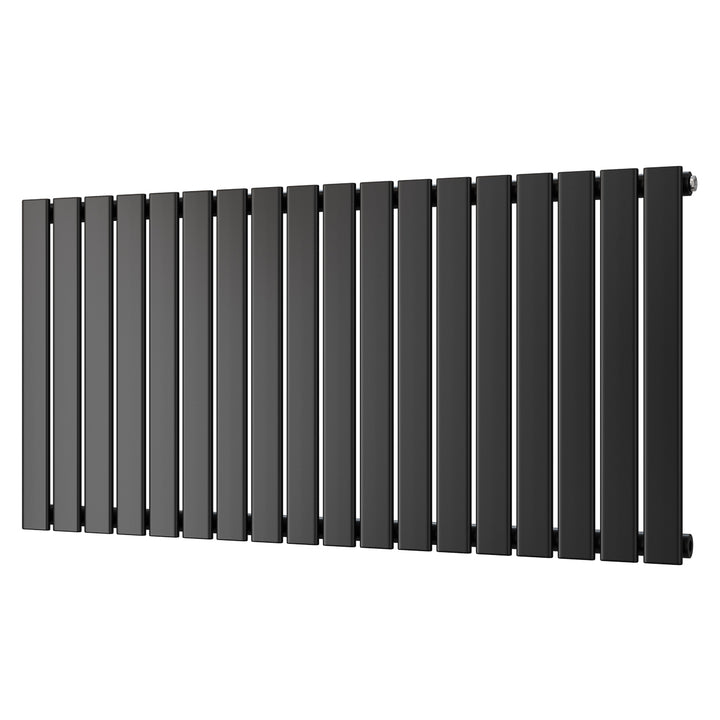

Typhoon - Black Horizontal Radiator H600mm x W1224mm Single Panel
Typhoon - Black Horizontal Radiator H600mm x W1224mm Single Panel
Typhoon - Black Horizontal Radiator H600mm x W1224mm Single Panel

Guarantee Length: 15 Years

Collection: Typhoon

Supplied with: Wall Brackets, Masonry Fixings, Bleed Valve & Blanking Plug Included

Colour: Black

Finish: Matt

Heat Source: Central Heated/Hot Water

Ral Code: 9005

Material: Steel

Orientation: Horizontal

Style: Flat Tube

Radiator Valves Included: No

Product Assurances: UKCA Marked, BS EN 442 Certified, 15 Years Guarantee

Panel Type: Single Panel

SKU TYP-601224BS

Connection Size/Type: 1/2" BSP

GTIN:5056675419796

Dry Mass (kg):21 kg

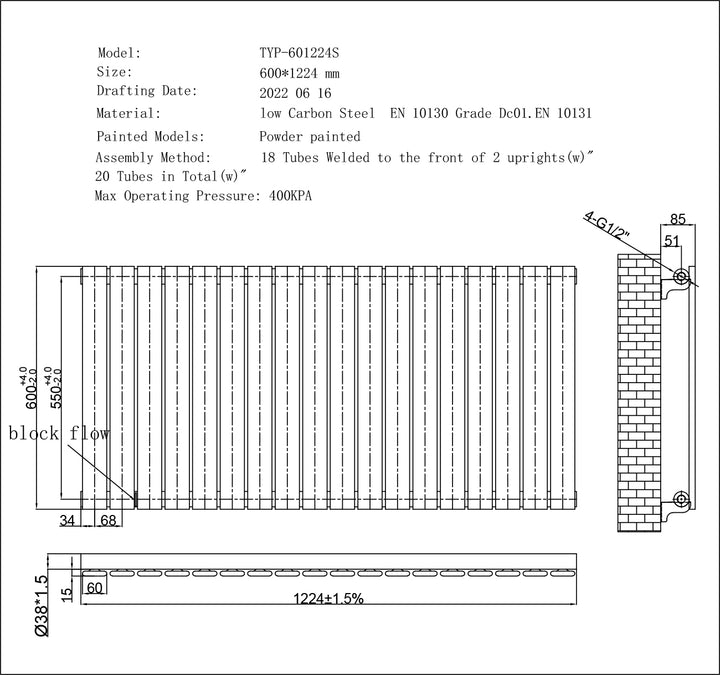

Height: 600mm

Width:1224mm

Number of Tubes: 18

Pipe Centres: 1224mm + Valves

Projection: 85mm

Wall to Pipe Centres: 51mm

BTUs (T30): 1535

BTUs (T40):2228

BTUs (T50): 2975

Watts (T30):450

Watts (T40): 653

Watts (T50): 872

Water Content (l): 7.8

Maximum Operating Pressure (kPa): 400

Depth: 53mm

Material

Steel offers the lowest price tag compared to other materials, but it also offers the most diversity in terms of colour and style. Steel is malleable which allows radiators to be efficient because they can be physically designed to better pass heat from the water inside to the space around them (this is a radiator's job after all, despite some thinking that its job is to “store” heat). The heat output is also good, the proof is in the pudding with this one - would steel be the most common radiator material if the heat output was rubbish? Steel is a highly durable material which is important as radiators are going to be the victims of some knocks and bangs over time and you want them to withstand that.

Style

A popular pick for those looking to add a touch of design to their home, the flat tube style offers a slimline feel that will work with pretty much any décor. The flat front tubes are connected to round tubes (these are called collectors) and this slim projection makes it perfect for installation in what would otherwise be ‘dead space’. The greater surface area and larger tubes of this modern radiator offers super-efficient functionality and delivers a much greater heat output than other radiators with smaller tubes. The powder painting gives the metal a perfectly even finish. It’s easy to maintain and clean and delivers a good level of heat distribution.

Panels

Single panel radiators are radiators which use just one panel to heat a room instead of relying on columns, fins or a second panel. These sleek and modern radiators are perfect for small rooms or tight spaces as they have a small projection but also don’t need too much heat.

Colour

Black, the colour that always fits and never fades. This matt black powder painted radiator is exactly what your home needs. Black radiators go well with anything. As a colour, there are few shades or hues that it does not complement. Whether providing effective shadow tones to an already dark background, or a striking contrast to more brightly coloured walls, black radiators rarely look out of place. As well as suiting a great variety of home styles, black is a very forgiving shade. It won't show dust, dirt, or rust like white so you know they will look great well into the future.

Heat Source

A central heating or hot water radiator is one that is plumbed into your homes central heating system. Whether you have a Combi boiler, gravity fed (conventional) system or a system with a cylinder, you can install this radiator.

Accessories

This radiator has G1/2” connections either side at the bottom and so the valves required will depend on your pipework (which is why they aren’t provided with the radiator):

  • For pipework coming from the wall to the side of the radiator, use corner valves.
  • For pipework coming from the floor and up to the side of the radiator, use angled valves.
  • For pipework coming along the wall to meet the side of the radiator, use straight valves.

There are a few different types of valves available for you to choose from: Manual Valves provide easy on/off control – simply turn the valve by hand to allow the water from your central heating to pass through into the radiator or towel rail, just like a tap! If this radiator is going to be in the same room as your main boiler thermostat (usually a little box on the wall or the mantle, that you turn up and down) then we advise you to use manual valves over TRV’s because a TRV will conflict with your boiler thermostat and can cause temperature issues around the home. Thermostatic Valves (TRVs) provide multi temperature control of the radiators in your home – saving energy and money! These valves have sensor mechanisms inside that shut off the flow of hot water to the radiator when the room temperature reached the desired level! If your looking to reduce your carbon footprint while remaining cosy warm, then TRV’s are the way to go (provided they aren’t installed in the room where your main boiler thermostat is).

  • Free delivery (UK Mainland, Northern Ireland/Highlands/Islands)
  • Once dispatched, all orders are sent on a Next Working Day delivery service
  • We deliver between 8am and 6pm
  • Contact us to delay delivery/request a specific day
  • Limitless (that's right, no time limit!) returns
  • Free of charge: either we will collect/send a returns label, or we'll refund your postage costs.
  • Returns (for reasons other than damage or faults) can only be accepted if the item is returned in the original packaging and has not been fitted or used in any way.
  • Whilst all our products pass strict quality standards, on very rare occasions, you may find an item arrives damaged. We ask that when you receive your order, you inspect the packaging before signing and note any damage when signing for it or refuse the delivery, with damage as the reason. Please contact us if you have any issues.
  • If you find damage after you have signed for your delivery, please contact us with images of the damage as soon as possible.
  • Once the damage has been reported, we'll either replace the item completely free of charge or refund you in full.
  1. How can I contact you?

    You can message us on live chat. We aim to reply in one minute, between 9am - 5:30pm. After 5:30pm, we'll create a ticket and get back to you asap.

  2. Where do you deliver?

    We deliver to the whole UK and Northern Ireland - including the highlands and islands. We are currently unable to offer international delivery.

  3. Who will deliver my order?

    Our 4 main couriers for UK Radiators products are Royal Mail, DPD, APC and Tufnells. Your courier will depend on the size and weight of the items on your order.

    For example, a pair of valves will be sent to you with Royal Mail, whereas a column radiator will be sent with Tufnells.

    Tracking is provided for all orders dispatched from our warehouse.

    If you order a Terma product, your item(s) will be coming directly from their warehouse.

    The couriers they use are Stop Start and Parcelforce, and tracking is provided where possible.

  4. Can I choose a specific time or day for my delivery?

    If, for any reason, you would like to delay your delivery, please contact one of the customer service team as soon as you have placed your order, who will be able to assist you.

    We are currently unable to request specific delivery time slots with our couriers.

    Some of our couriers will advise you of a smaller time slot for your delivery, but unless otherwise stated, deliveries can take place any time between 8am and 6pm.

  5. Can I upgrade my delivery?

    Once dispatched, your order is sent on a next working day delivery service. This is the fastest available service, so we are unable to upgrade your delivery any further.

  6. Can I send orders to a different address?

    You can change the shipping address to a different address if your billing address matches what's registered against your payment method.

    However, this can only be done when placing the order.

    We are unable to change the delivery address after the order has been placed and dispatched. In this instance, the order would need to be cancelled and refunded, and a new order placed with the correct delivery address.

Read more FAQs

Typhoon - Black Horizontal Radiator H600mm x W1224mm Single Panel

Product code: 20581

Regular price £230.00 Sale price£161.00
/
Incl. VAT
Save 30%
In Stock
Free delivery in 1-3 days
Free Delivery
Est. delivery date: Wednesday, 8th of May
*Deliveries to Northern Ireland, Highlands and Islands may take a little longer to arrive.

Your chosen heating system:

Gas or Oil boiler
Low-temperature system e.g. heat pump
Watts:
BTUs:
Change my chosen system
The heat output of this radiator has been verified by Ethy.

Watts & BTUs (British Thermal Units) Explained

What is a Watt?

Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).

What is a BTU?

BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.

Why are they important?

We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.

Need help figuring out how much heat your room needs?

Our fast and easy-to-use BTU calculator can help you:

  • Work out a heating requirement value (in BTUs & Watts) for your room
  • Show you in-stock radiator recommendations that can fulfil this heat requirement
Try our room heating calculator

Delta (Δ) Ratings Explained

What is a Delta (Δ) Rating?

When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.

What does the value represent?

In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.

We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.

If you don't know the room heat loss, you can use our calculator to find out.

What Delta Rating should I use?

  • Δ50 = Gas or oil boiler with a flow temperature of around 75°C and a return temperature of around 65°C.
  • Δ30 = Low temperature systems e.g heat pumps.
