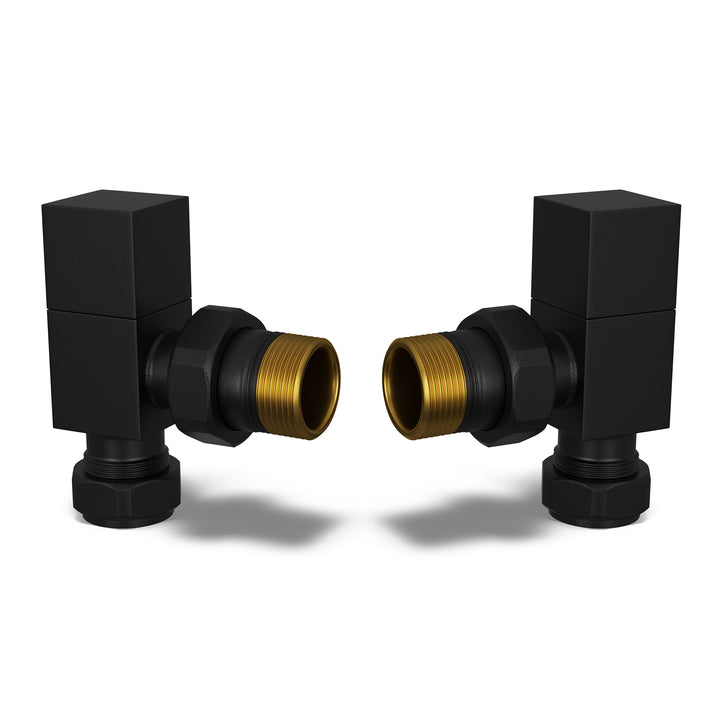

Buy now, pay later with KlarnaSquare - Black Radiator Valves Angled 10mm
Product Information
Main Features:
- On/Off Control
- Guarantee: 5 Years
- 10mm Pipework Connection
- For pipework coming from the wall and up or from the floor to the side
- Valve, Lockshield & Pair of 10mm Valve Reducers
- Colour: Black
- Finish: Matt
These valves have a 1/2" BSP radiator connection and so will fit all radiators and towel rails in the UK. The other connection to consider is that of your pipework, these valves have a 10mm pipework connection (usually termed “microbore” pipework) and so will fit pipework of the same size. We have these valves available in 15mm and 8mm for those with standard (15mm) or smaller microbore (8mm) pipework.
Fitting TypeAngled valves are probably the most commonly used valves in homes across the UK, they connect your radiator to your central heating pipework at a 90-degree angle. These angled valves are the ones for you if your set up is one of the below:
- Pipework comes out of the floorboard, and the radiator connection is on the side.
- Pipework comes out from the wall and bends up, and the radiator connection is on the side.
- Pipework comes out of the wall and the radiator has connections at the bottom, but the valve itself will protrude in front of the radiator, so where this is the case, we recommend corner radiator valves.
These valves are made from high quality brass, which means they are strong and durable and will look great on your radiator or towel rail for years to come!

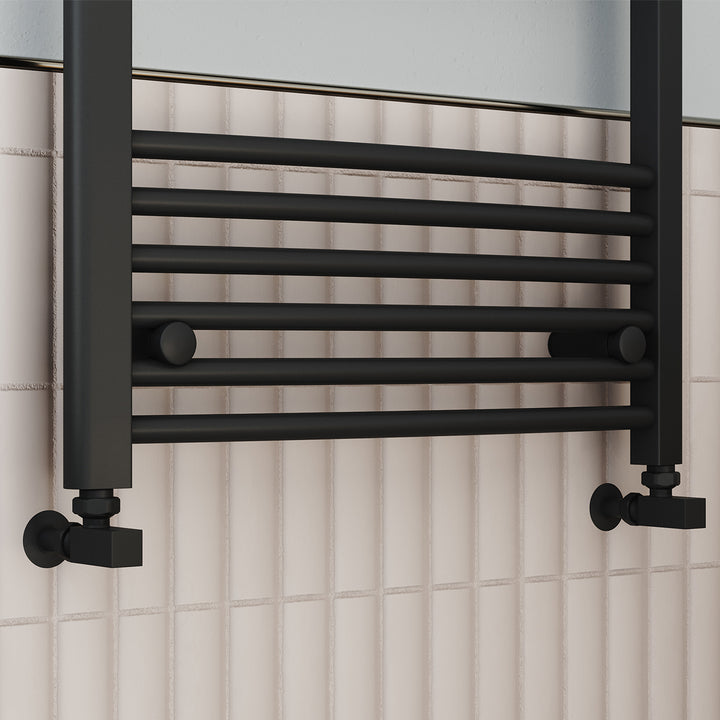

ColourThese textured matt black valves could be the perfect finishing touch that your radiator needs. The perfect match for monochrome décor, black is an all-purpose colour that never goes out of style – in fact it’s getting increasingly popular! Match with any black radiator or towel rail from our UK Radiators brand and you’re guaranteed a seamless blend.
Don’t forget to add some matching pipe covers to your basket to complete the overall look and hide unsightly pipework!
StyleModern radiator valves offer sleek style to suit new and existing radiators in homes with modern décor.
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ70 = Gas boilers before 2005 / Oil boilers before 2007.
- Δ50 = Gas boilers after 2005 / Oil boilers after 2007.
- Δ30 = Low temperature systems e.g heat pumps.
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
| SKU | TAL-MAN-S-BLA-VR10 |
|---|---|
| Brand/Manufacturer | UK Radiators |
| Collection | Square |
| Colour | Black |
| Finish | Matt |
| RAL Code | 9011 |
| Material | Brass |
| Dry Mass (kg) | 0.54 kg |

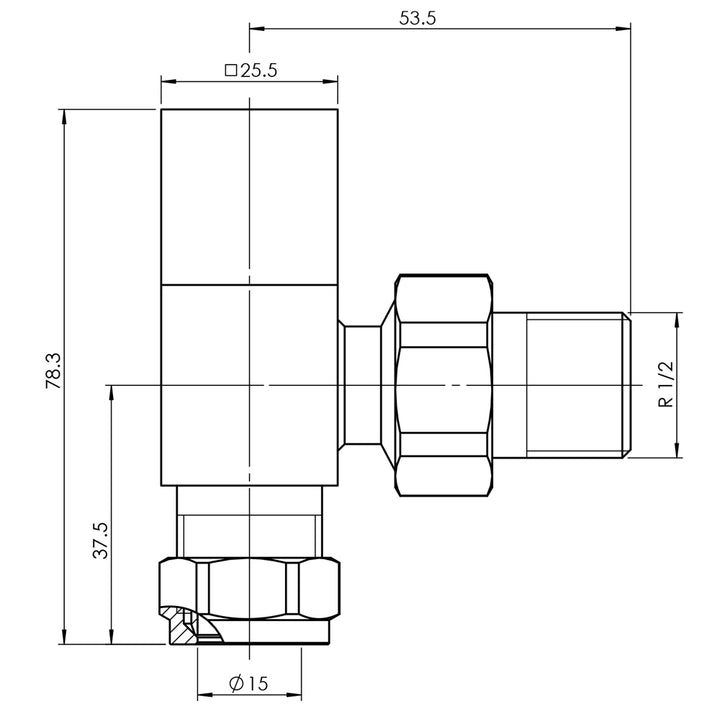

| Height | 78.00 mm |
| Width | 66.00 mm |
| Connection | 10mm |
| Control Type | On/Off Control |
| Heat Source | Central Heated/Hot Water |
| Style | Modern |
| Fitting Type | Angled |
| Supplied With | Pair of Valves, Pair of 10mm Valve Reducers Included |
| Product Assurances | CE Marked, BS EN 2767 Certified, 5 Years Guarantee |
| GTIN | 5056094619043 |
| Guarantee Length | 5 Years |
| Multi-Buy | Multi-Buy |
These valves have a 1/2" BSP radiator connection and so will fit all radiators and towel rails in the UK. The other connection to consider is that of your pipework, these valves have a 10mm pipework connection (usually termed “microbore” pipework) and so will fit pipework of the same size. We have these valves available in 15mm and 8mm for those with standard (15mm) or smaller microbore (8mm) pipework.
Fitting TypeAngled valves are probably the most commonly used valves in homes across the UK, they connect your radiator to your central heating pipework at a 90-degree angle. These angled valves are the ones for you if your set up is one of the below:
- Pipework comes out of the floorboard, and the radiator connection is on the side.
- Pipework comes out from the wall and bends up, and the radiator connection is on the side.
- Pipework comes out of the wall and the radiator has connections at the bottom, but the valve itself will protrude in front of the radiator, so where this is the case, we recommend corner radiator valves.
These valves are made from high quality brass, which means they are strong and durable and will look great on your radiator or towel rail for years to come!
ColourThese textured matt black valves could be the perfect finishing touch that your radiator needs. The perfect match for monochrome décor, black is an all-purpose colour that never goes out of style – in fact it’s getting increasingly popular! Match with any black radiator or towel rail from our UK Radiators brand and you’re guaranteed a seamless blend.
Don’t forget to add some matching pipe covers to your basket to complete the overall look and hide unsightly pipework!
StyleModern radiator valves offer sleek style to suit new and existing radiators in homes with modern décor.
