Zennor - White Dual Fuel Towel Rail H1600mm x W500mm Thermostatic - Curved
Product Code: 20125
£171.90
Was
£191
Out of stock
Available From: 21/04/2023
SKU
ZEN-16500CW-THDF
Product Information
Your chosen heating system:
Gas boiler installed after
2005
or
Oil boiler installed after
2007
2005
or
Oil boiler installed after
2007
We've displayed the most appropriate heat output below to adequately heat your room:
Watts:
BTUs:
The heat outputs have been measured at Delta Δ50*.
*The Delta rating for your chosen heating system as recommended by Building Regulations
Main Features:
BTUS
Material- Δ30: 1143 / Δ40: 1631 / Δ50: 2153
- Δ30: 335 / Δ40: 478 / Δ50: 631
What are Watts & BTUs?
What is a Delta (Δ) Rating?
What is a Delta (Δ) Rating?
- Electric Mode: 600W
- Guarantee: 15 Years (Towel Rail), 2 Years (Element)
- Dual Fuel Element, T-Pieces, Manual Valves, Brackets & Masonry Fixings
- Colour: White
- Finish: Gloss
- Heat Source: Dual Fuel
Steel offers the lowest price tag compared to other materials, but it also offers the most diversity in terms of colour and style. Steel is a highly durable material which is important as towel rails are going to be the victims of some knocks and bangs over time and you want them to withstand that.
StyleA curved ladder towel rail is as you would imagine - the ladder name signifies the run of horizontal tubes connected by two vertical tubes (these are called collectors), the “curve” simply means that these horizontal tubes curve outward. This curve provides a benefit that many find rather useful, the design means that there is more room for towel storage and makes feeding the towels through the ladder a little easier.
ColourWhite is a true classic. Ideal for those who like to switch up their décor from time to time, a white towel rail won’t restrict your interior design spirit. This gloss powder-coated finish is perfectly even and looks gorgeous with the simple wipe of a cloth. White can be perceived as boring or safe, but in reality, it gives a clean and fresh impression in your bathroom. Plus, with our wide range of radiator valves and accessories, you can add a touch of colour to the radiator without it becoming overbearing within the room.
Heat SourceThis dual fuel towel radiator works both as part of your central heating and independently using electricity. This enables you to keep your bathroom warm over the winter by relying just on the central heating system while also being able to use the electric element to dry your towels during the warmer summer months while the rest of your heating is turned off.
AccessoriesThis towel rail is provided with everything required to hang the rail on the wall - brackets & masonry fixings, chrome bleed valve and blanking plug, as well as all the accessories needed for the dual fuel functionality - electric element, 2 x t-pieces, a pair of angled manual valves. The t-piece acts as an extension which allows you to insert the electric element into the towel rail as well as attach the valves. The use of 2nd t-piece provided is optional, for those who want to create symmetry with the valves on both sides of the rail. The element can be installed on either the left or right hand side of the towel rail - whichever is better for your set up.

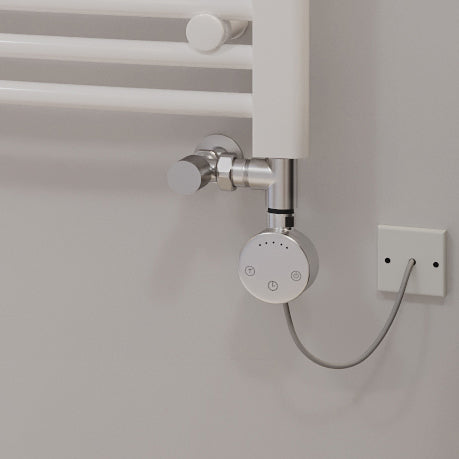

The Element
The Talus digital element gives you flexibility and control over your heating system. The thermostatic heating system allows the radiator temperature range to be selected from 40-65 degrees, in 5 degree increments. The LED lights indicate the temperature setting, for at-a-glance checking.
Operation:When set to Comfort mode, the thermostat keeps the internal temperature of the radiator or towel rail at the value set by you (using the + and – buttons). Boost mode can be used to increase the element to the maximum temperature for a period of 2 hours (not exceeding 65°C), at the end of the Boost the element returns to Comfort mode.
There are also 2 different Timer modes: 12 hour and 24 hour. When set to these modes, the element will use Boost for 2 hours, then return to Comfort mode for either 10 or 22 hours – depending on your selection – after this time, the element will use Boost again. This sequence is repeated endlessly. The final operation mode is Standby/Antifreeze. In this mode the element will not operate (meaning it won’t provide any heat to the radiator or towel rail) unless the temperature drops below 10°C, where it will use the antifreeze mode to activate the element in order to prevent any internal liquid from freezing.
Full Installation Instructions and User Guide will be provided with the element.
*The electric heating element supplied with this dual fuel towel rail must be installed by a registered competent electrician. Any faults developed due to incorrect installation will not be covered under the product warranty. The suggested fuse size is calculated based on a 230V supply and whilst 230V is the nominal voltage given to homes in the UK, the actual voltage supply can vary. The registered competent electrician carrying out the installation will determine the appropriate size of fuse to use for the installation.
Delta (Δ) Ratings Explained
What is a Delta (Δ) Rating?
When discussing heat outputs, the Delta rating is the difference between the temperature of the water inside the heating system and the desired temperature of the room.
What does the value represent?
In simple terms, this value is about heat loss. Heating a room only works, if the radiator output exceeds the heat loss of the room.
We use this calculation to make it easy to choose a radiator that will have a heat output that exceeds the heat loss of the room when connected to your heating system type.
If you don't know the room heat loss, you can use our calculator to find out.
What Delta Rating should I use?
- Δ50 = Gas boilers before 2005 / Oil boilers before 2007.
- Δ40 = Gas boilers after 2005 / Oil boilers after 2007.
- Δ30 = Low temperature systems e.g heat pumps.
Watts & BTUs (British Thermal Units) Explained
What is a Watt?
Watts are our main unit of energy/power in the UK, commonly associated with lightbulbs and Home Energy performance certificates (EPCs).
What is a BTU?
BTUs are the unit of measurement used to portray a radiators heat output and a rooms heating requirement. 1 Watt is equal to 3.41 BTUs.
Why are they important?
We buy radiators to heat our homes, right? So, we need a way of knowing if a radiator is powerful enough to heat the room that we are shopping for - Watts and BTUs provide us with a value that makes its easier to compare radiators and ultimately choose the right one for our heating requirement.
Need help figuring out how much heat your room needs?
Our fast and easy-to-use BTU calculator can help you:
- Work out a heating requirement value (in BTUs & Watts) for your room
- Show you in-stock radiator recommendations that can fulfil this heat requirement
| SKU | ZEN-16500CW-THDF |
|---|---|
| Brand/Manufacturer | UK Radiators |
| Collection | Zennor |
| Colour | White |
| Finish | Gloss |
| RAL Code | 9016 |
| Material | Steel |
| Dry Mass (kg) | 13.3 kg |
| Height | 1,600.00 mm |
| Width | 500.00 mm |
| Projection | 113.00 mm |
| Pipe Centres | 350mm - 550mm |
| Wall to Pipe Centres | 79.5mm - 99.5mm |
| Number of Tubes | 26 |
| Tube Diameter | 22mm |
| BTUs (T30) | 1,143.00 BTUs |
| BTUs (T40) | 1,631.00 BTUs |
| BTUs (T50) | 2,153.00 BTUs |
| Watts (T30) | 335.00 Watts |
| Watts (T40) | 478.00 Watts |
| Watts (T50) | 631.00 Watts |
| Element Output | 600.00 |
| Control Type | Built-In Programmable Thermostat |
| Maximum Operating Temperature (°C) | 40°C - 60°C; 10°C Antifreeze Protection |
| Heat Source | Dual Fuel |
| IP Rating | IP44 |
| Dual Fuel Operating Modes | Comfort, Boost/Dryer, Standby w/Antifreeze, Timer |
| Dual Fuel Power Supply | 220V-240V Fused Spur, 3 Amp Fuse* |
| Connection Size/Type | 1/2" BSP |
| Style | Curved Ladder |
| Supplied With | Dual Fuel Element, T-Pieces, Manual Valves, Brackets & Masonry Fixings Included |
| Radiator Valves Included | Yes |
| Product Assurances | CE Marked, BS EN 442 Certified, 15 Years (Towel Rail), 2 Years (Element) Guarantee |
| GTIN | 5056094650305 |
| Guarantee Length | 15 Years (Towel Rail), 2 Years (Element) |
Material
Full Installation Instructions and User Guide will be provided with the element.
Steel offers the lowest price tag compared to other materials, but it also offers the most diversity in terms of colour and style. Steel is a highly durable material which is important as towel rails are going to be the victims of some knocks and bangs over time and you want them to withstand that.
StyleA curved ladder towel rail is as you would imagine - the ladder name signifies the run of horizontal tubes connected by two vertical tubes (these are called collectors), the “curve” simply means that these horizontal tubes curve outward. This curve provides a benefit that many find rather useful, the design means that there is more room for towel storage and makes feeding the towels through the ladder a little easier.
ColourWhite is a true classic. Ideal for those who like to switch up their décor from time to time, a white towel rail won’t restrict your interior design spirit. This gloss powder-coated finish is perfectly even and looks gorgeous with the simple wipe of a cloth. White can be perceived as boring or safe, but in reality, it gives a clean and fresh impression in your bathroom. Plus, with our wide range of radiator valves and accessories, you can add a touch of colour to the radiator without it becoming overbearing within the room.
Heat SourceThis dual fuel towel radiator works both as part of your central heating and independently using electricity. This enables you to keep your bathroom warm over the winter by relying just on the central heating system while also being able to use the electric element to dry your towels during the warmer summer months while the rest of your heating is turned off.
AccessoriesThis towel rail is provided with everything required to hang the rail on the wall - brackets & masonry fixings, chrome bleed valve and blanking plug, as well as all the accessories needed for the dual fuel functionality - electric element, 2 x t-pieces, a pair of angled manual valves. The t-piece acts as an extension which allows you to insert the electric element into the towel rail as well as attach the valves. The use of 2nd t-piece provided is optional, for those who want to create symmetry with the valves on both sides of the rail. The element can be installed on either the left or right hand side of the towel rail - whichever is better for your set up.
The Element
The Talus digital element gives you flexibility and control over your heating system. The thermostatic heating system allows the radiator temperature range to be selected from 40-65 degrees, in 5 degree increments. The LED lights indicate the temperature setting, for at-a-glance checking.
Operation:When set to Comfort mode, the thermostat keeps the internal temperature of the radiator or towel rail at the value set by you (using the + and – buttons). Boost mode can be used to increase the element to the maximum temperature for a period of 2 hours (not exceeding 65°C), at the end of the Boost the element returns to Comfort mode.
There are also 2 different Timer modes: 12 hour and 24 hour. When set to these modes, the element will use Boost for 2 hours, then return to Comfort mode for either 10 or 22 hours – depending on your selection – after this time, the element will use Boost again. This sequence is repeated endlessly. The final operation mode is Standby/Antifreeze. In this mode the element will not operate (meaning it won’t provide any heat to the radiator or towel rail) unless the temperature drops below 10°C, where it will use the antifreeze mode to activate the element in order to prevent any internal liquid from freezing.
Full Installation Instructions and User Guide will be provided with the element.
*The electric heating element supplied with this dual fuel towel rail must be installed by a registered competent electrician. Any faults developed due to incorrect installation will not be covered under the product warranty. The suggested fuse size is calculated based on a 230V supply and whilst 230V is the nominal voltage given to homes in the UK, the actual voltage supply can vary. The registered competent electrician carrying out the installation will determine the appropriate size of fuse to use for the installation.
